EXTECH EX505-K 重型工业多功能表套装

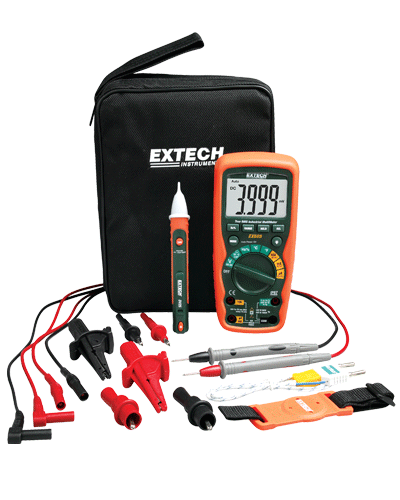

Kit Includes:

• Model EX505 Industrial grade, CAT IV-600V, 4000 count display, waterproof, drop-proof, rugged multimeter with True RMS functions
• Model DV25 Dual Range AC Voltage Detector (24 to 1000VAC/100 to 1000VAC) + Flashlight with Audible/ Visual indication, double-molded housing, and CAT IV-1000V safety rating
• Model TL808 8-Piece Professional Test Lead Kit with CAT III-1000V safety rating
• Set of double molded professional test leads
• Type K thermocouple bead probe with Type K to Banana Input Adaptor
• Magnetic hanging strap
• Supplied in a soft carrying case that provides protection and organization for the meters whenever they are needed
• Dimensions: 9.8x8x2" (248x203x51mm); Weight: 1.2lb (544g)

EX505 Features:

• True RMS DMM with 11 functions and 0.5% basic accuracy
• AC/DC Voltage & Current, Resistance, Capacitance, Frequency, Temperature, Duty Cycle, Diode/Continuity
• Dual sensitivity frequency functions (electrical/electronic)
• 1000V input protection on all functions
• 10A max Current
• Data hold, Relative, Auto power off
• 4,000 count large backlit LCD
• Double molded housing for waterproof protection
• Complete with double molded test leads, magnetic hanging strap, Type K bead wire temp probe, carrying case and 9V battery
• DV25 Features:
• Non-contact detection of AC Voltage in 2 ranges: 24 to 1000VAC, 100 to 1000VAC
• CAT IV-1000V safety rating
• For use on 50/60Hz circuits
• Rugged double-molded housing
• Tip fits into outlets or against wire insulation testing
• Audible and Visual voltage indication
• Built-in bright flashlight with On/Off button
• Compact size with pocket clip
• Dimensions: 6.25 x 1" (159 x 25mm), Weight: 1.48oz (42g)
• Complete with two AAA batteries

TL808 Kit Features:

• Professional Test Lead Kit
• Two 42" (1m) PVC lead extensions with shrouded banana plugs at both ends, UL listed
• Two modular 4" (102mm) Heavy Duty test probe handles with 0.16" (4mm) banana plug tip, UL listed
• Two standard size, alligator clips with insulated rubber boot
• Two extra large, double-insulated, alligator clips with sharp teeth for piercing insulated wire. Jaws open to 0.8" (20mm)
• Includes carrying case that provides storage for the kit and additional space to hold your meter
