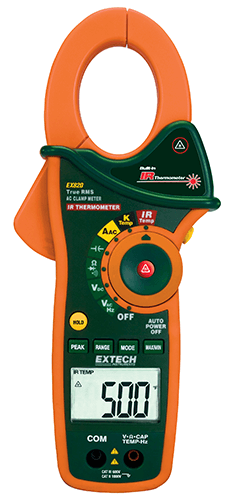

EXTECH EX820 带红外测温仪真有效值交流钳形表 (AC 1000A)

 IR Temperature (IR): -50 to 270ºC / ±2.0% rdg

AC Current:0.1 to 1000A /±2.5%

AC Voltage: 0.1mV to 600V /±1.5%

DC Voltage: 0.1mV to 600V /±1.5%

Resistance: 0.1 to 40MΩ /±1.5%

Capacitance: 0.001nF to 40,000μF /±3.0%

Frequency: 0.001kHz to 4kHz  /±1.5%

Type K Temperature: -20 to 760ºC / ±3%rdg

Continuity: Yes

Inrush: Yes

Diode: Yes

Dimensions: 0.6x4.3x2" (270x110x50mm)

Weight: 13.6oz (386g)

Complete with test leads, 9V battery, general purpose Type K probe and case

Details



Features:

  • Non-contact InfraRed Temperature measurements with laser pointer
  • True RMS Current and Voltage measurements
  • Peak hold captures inrush currents and Transients
  • MultiMeter functions include AC/DC Voltage, AC Current, Resistance, Capacitance, Frequency, Diode, Continuity and Type K Thermometer
  • 1.7" (43mm) jaw opening for conductors up to 750MCM or two 500MCM
  • 4000 count backlit display
  • Autoranging with manual range button
  • Features include Data Hold and Min/Max, Auto Power off
  • Complete with test leads, 9V battery, general purpose Type K probe and case

Manual

Datasheets
