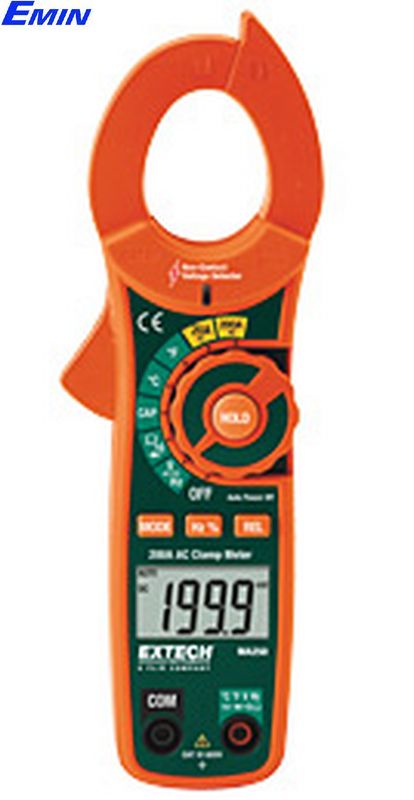

EXTECH MA250 200A钳形表,带NCV功能

Display: counts 4000

AC Current: 20.00A, 200.0A /0.01A /±2.5%

AC Voltage: 4.000V, 40.00V, 400.0V,  600V /0.001V /±1.8%

DC Voltage: 400.0mV, 4.000V, 40.00V, 400.0V, 600V /0.1mV /±0.8%

Resistance: 400.0Ω, 4.000kΩ, 40.00kΩ, 400.0kΩ,

                   4.000MΩ,  40.00MΩ /0.1Ω /±0.8%

Frequency: 10Hz to 10kHz /0.01Hz /±1.5%

Capacitance: 40.00nF, 400.0nF, 40.00μF, 100.0μF /0.01nF /±3.0%

Temperature: -4 to 1400°F (-20 to 760°C) /0.1° /±(3% + 9°F/5°C)

Duty Cycle: 0.5 to 99.0% 0.1% ±(1.2% + 2d)

Diode: Yes

Continuity: Yes

Dimensions: 7.9x2.6x1.5" (200x66x37mm)

Weight: 7.2oz (205g)

Complete with test leads, general purpose Type K bead wire temperature probe, two AAA batteries, and carrying case

Manufacturer: Extech USA

Detail

Features:

  • 1.2" (30mm) jaw size for conductors up to 350MCM
  • Relative Mode for Capacitance Zero, and Offset Adjustment
  • Data Hold and MIN/MAX
  • Auto Power Off

Complete With:

  • Test leads
  • Type K bead wire probe (-22 to 572°F/ -30 to 300°C)
  • Two AAA batteries
  • Carrying case
