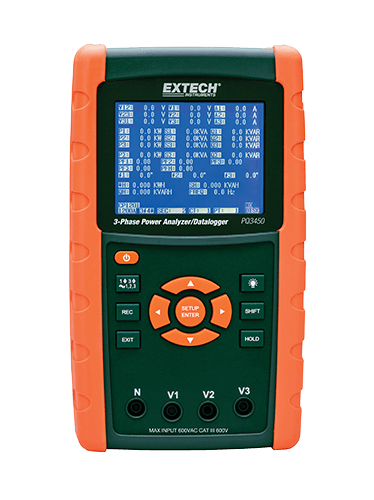

Extech PQ3450 三相功率分析仪/数据记录器(3000A,数据记录仪)

  • 制造商: EXTECH
    Model: PQ3450
    • 报价要求 报价要求
  • 36,143,000 VND
  • 价格合理详情请致电

    热线:   (+84) 966520220

    电话:  +84 (24) 62923267




  • 质量承诺
  • 正品保修
  • 送货到家
  • 交易简单化

AC Voltage (True rms): 600.0V /±0.5%

AC Current: 3000A /±0.5%

Active Power (MW): 9.999MW /±1.0%

Apparent Power (MVA): 9.999MVA /±1.0%

Reactive Power (MVAR): 9.999MVAR /±1.0%

Power Factor: 0.00 to 1.00 /±0.04

Frequency Range: 45Hz to 65Hz /±0.1Hz

Phase: -180° to +180.0° /±1°

Current Clamp input: 200mV, 300mV, 500mV /±0.5

                                   1V, 2V, 3V; user-selectable

Active Power Energy (MWH): 0.0kWh to 9.999MWH /±2.0%

Apparent Power Energy (MVAH): 0.0KVAh to 9.999MVAH /±2.0%

Reactive Power Energy (MVARH): 0.0kVARh to 9.999MVARH /±2.0%

Datalogging:  30,000 readings (2GB SD memory Card)

Dimensions: 8.86 x 4.92 x 2.52" (225 x 125 x 64mm)

Weight Meter: 2.2lbs (1010g)

Complete with 4 voltage leads with alligator clips, 8 AA batteries, SD memory card, Universal AC adaptor (100 to 240V), and case. Clamp probes sold separately.

Manufacture: Extech USA



Option

PQ3450-2 ......200A Power Analyzer

PQ3450-12 ....1200A Power Analyzer

PQ3450-30 ....3000A Power Analyzer



详细
Features
  • Large dot-matrix, sun-readable, numerical, backlit LCD with easy-to-use onscreen menu
  • Full system analysis with up to 35 parameters:
    • V (phase-to-phase), V (phase-to-ground)
    • A (phase-to-ground)
    • KW / KVA / KVAR / PF (phase)
    • KW / KVA / KVAR / PF (system)
    • KWH / KVAH / KVARH / PFH (system)
    • Phase angle
  • Optional 200A, 1200A Current Clamps or 3000A Flexible Current Probes
  • Adjustable Current Transformer CT (1 to 600) and Potential Transformer PT (1 to 1000) ratio for high power distribution systems
  • Log up to 30,000 reading on a removable SD memory card in Microsoft Excel® format
  • Wide sampling rate range (2 seconds to 2 hours)
  • Built-in Clock and Calendar
  • 1-Year warranty
