EXTECH PRC15 电流和电压校准器

  • 制造商: EXTECH
    Model: PRC15
    来源: Taiwan
    • 报价要求 报价要求
  • Price (exclude tax) 8,742,000 VND
    Price (include tax) 9,616,200 VND
  • 价格合理详情请致电

    热线:   (+84) 966520220

    电话:  +84 (24) 62923267




Source Output: 0 to 24mA current for loads up to 1000 ohms (-25% to 125%),  Output 0 to 20V

Measure: 0 to 50mA current signal (-25 to 230%),  0 to 19.99V

Input/Output Ranges and Displays Resolution

0 to 19.99mA /0.01mA

0 to 24.0mA /0.1mA

0 to 1999mV /1mV

0 to 20.00V /10mV

Accuracy: 0.01% ±1 digit

Meter Dims (LxWxH) 6.3" x 3.2" x 1.7" (159 x 80 x 44mm)

Meter Wt  8.2oz (232g) - not including battery weight

 Each meter includes test leads, alligator clips, 100V-240V AC Universal Adaptor with 4 plugs, six

1.5V AA batteries, and hard carrying case

Details

Catalog

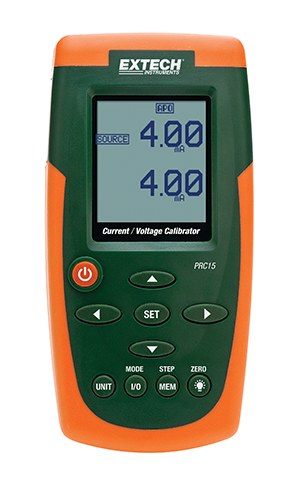

PRC15: Current and Voltage Calibrator/Meter

Precision Current & Voltage Source/Measure Calibrator

Features:

  • 0 to 24mA (-25 to 125%) readout
  • 0 to 20V DC calibration source
  • Up to five user adjustable calibration presets
  • Palm-sized double molded housing and large dot-matrix digital backlit LCD
  • Standard banana I/O ports
  • Large battery bank for extended work cycle
  • External power adapter for continuous work cycle
  • Includes test leads, alligator clips, 100V-240V AC universal adaptor with 4 plugs, six AA batteries, and hard carrying case
