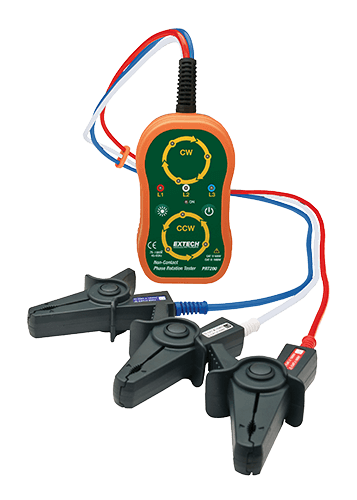

EXTECH PRT200 非接触式相序测试仪

Input Voltage:   75 to 1000VAC

Frequency Range:45 to 65Hz

Max conductor diameter: 33mm (1.3”)

Probe length: 86cm (34”)

Auto-Off: 5 min. without sequence detection

Low Battery Warning: Power LED flashes

Batteries: 4 x 1.5V AA

Current consumption:    15mA

Complete with three built-in 30" test leads with large color-coded alligator clips, four AA batteries, and pouch case



Detail
Features
  • 75 to 1000VAC input voltage with 45 to 65Hz frequency range
  • LEDs indicate phase orientation (clockwise or counter-clockwise) and whether each phase is live
  • Beeper sounds intermittently when correct phase is detected and continuously if phase is reversed
  • Durable housing with back cover magnet for attachment to an AC distribution panel for easy measurement
  • Adjustable Hi/Lo LED brightness switch for making measurements in dimly lit areas or sunlight
  • Fully insulated alligator clips with wide jaws
  • Low battery warning
  • Complete with three built-in 30" test leads with large color-coded alligator clips, four AA batteries, and pouch case

manual

Datasheets
