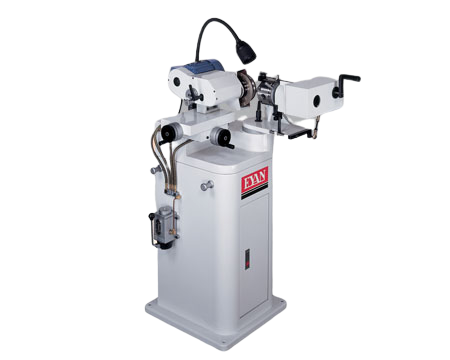

EYAN EY-32A 钻头研磨机

Grinding Range: Ø3 ~ Ø32 mm
Front Edge Angle: 40° ~ 180°
Back Rake Angle: 0° ~ 18°
Grinding Wheel Motor: 1/2 HP
Grinding Wheel Rotational Speed: 4300 RPM
Net Weight / Gross Weight: 154 kg / 197 kg
Packing Dimensions: 82 x 78 x 147 cm
STANDARD ACCESSORIES :
- #1 Cam for single flute chamfering tool
- #2 Cam for drill
- #3 Cam for 3 flutes chamfering tool
- #4 Cam for 4 flutes tap
- Automatic Centering 6-jaw Chuck
- Flange with Counter Weight
- Manual Lubricator
- Morse Taper Sleeve MT2, MT3
- Quartez Working Light
- Operation Manual
- Tool box
- Precision Ball Screw for X, Y-axis Ø16 mm
- Sealed Stand
- Grinding Wheel Ø150 x 25T x 31.75 mm
