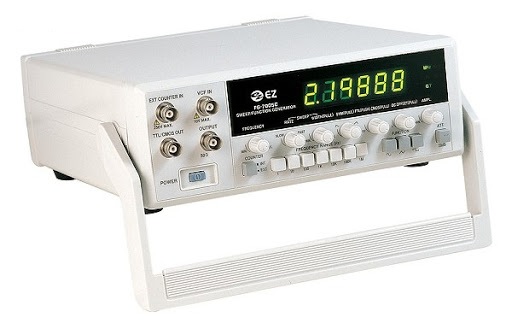

EZ DIGITAL FG-7005C 函数信号发生器
制造商: EZ DIGITAL Model: FG-7005C 来源: Korea - 报价要求
- 联系
0.05Hz ~ 5MHz Frequency output in 7 Range
4-in-1 Sweep, Function & Pulse Generator and
Frequency Counter
Versatile waveforms for Sine, Triangle, Ramp,
Pulse Sawtooth and DC outputs
Built in 6 digit internal and external counter display(Max.50MHz)
Internal and external linear sweep control from 1:1 to 100:1
Low distortion for sine waveform less than 1% at 0.2Hz ~ 100kHz
Variable symmetry for generating sawtooth and pulse waveforms
TTL and CMOS leveled square waveform output
Variable DC offset control
Variable output level control with 20dB attenuator and
amplitude control
manufacturer: EZ
made in Korea
Specifications
SPECIFICATIONS | FG-7005C |
FREQUENCY | |
Output Waveform | Sine, Triangle, Square, Pulse, Sawtooth, Ramp, TTL, CMOS |
Frequency Range | 0.05Hz-5MHz in the 7 Ranges (1, 10, 100, 1K, 10K, 100K, 1M) |
Frequency Accuracy | ± 1 count |
EXTERNAL FREQUENCY CONTROL (VCF) | |
Input Voltage | 0 to 10V (DC + AC peak) |
Frequency Variable Range | 100:1 or More |
DC Offset | ± 10V (Without Load), ± 5V (With Load) |
Symmetrical Variable Range | 10:1 to 1:10 or More |
SINE WAVE | |
Distortion | Less than 1% (0.2Hz~100kHz) |
SQUARE WAVE | |
Rise/Fall Time | Less than 25ns |
TRIANGLE WAVE | |
Linearity | Less than 1% to 100kHz, Less than 5% to 2MHz |
TTL OUTPUT | |
Output | TTL level |
Rise/Fall Time | Less than 25ns |
CMOS OUTPUT | |
Output | 4V~15V ± 1V, Continuously Variable |
Rise/Fall Time | Less than 40ns (at Max, output level) |
SWEEP | |
Width | 1:1 to 100:1 |
Rate | 20ms to 2s (50Hz to 0.5Hz) |
Internal Sweep | Linear |
External Sweep | By means of VCF input |
OUTPUT | |
Output Voltage | 20Vp-p (Open circuit), 10Vp-p (into 50W) |
Attenuator | -20dB step and continuously Variable |
Impedance | 50W ± 5% |
FREQUENCY COUNTER | |
Display | 6 digit green LED (0.2Hz ~ 50MHz) |
Accuracy | ±Timebase Error ± 1 count |
Input Sensitivity | kHz: 100mV, MHz: 300mV |
Max. Input Voltage | 150Vrm (at 1kHz) |
GENERAL | |
Operating Environments | 0°C ~ 40°C, 85% RH |
Ranges for Guaranteed | 25°C ±5°C, 70% RH |
Power Requirements | AC 115/230V ± 10%, 50/60Hz |
Power Consumption | Approx. 20W |
Dimensions (mm) | 225 (W) X 80 (H) X 260 (D) |
Accessories | Power Cord, BNC Cable, Fuse, Operators Manual |
