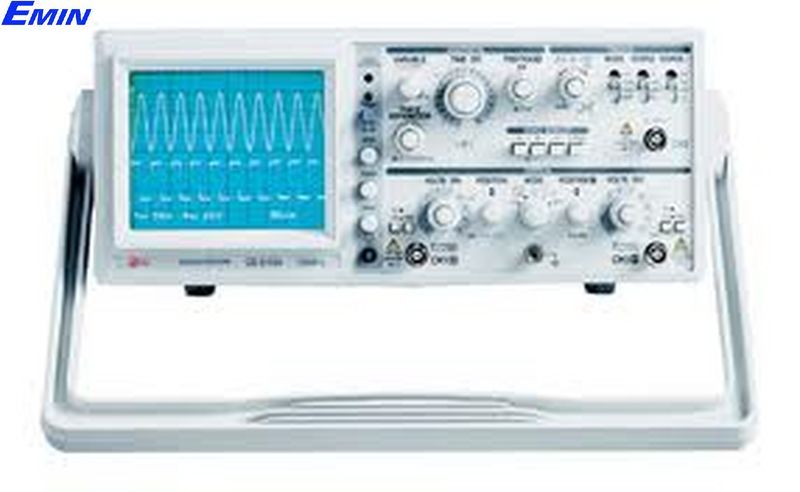

EZ DIGITAL OS-5100 模拟示波器(100MHz,2 CH)

  • 制造商: EZ DIGITAL
    Model: OS-5100
    • 报价要求 报价要求
  • 联系
  • 价格合理详情请致电

    热线:   (+84) 966520220

    电话:  +84 (24) 62923267




100MHz 2CH dual trace

6 inch large size high luminance CRT

Wider than specified frequency response

Signal delay with delay line useful for observation of

signal start point

ALT. Triggering function(Vert Mode)

Auto focusing according to the change of intensity

Drift compensation circuit employed in vertical amplifier

for low drift

Jitterless and high trigger sensitivity

TV sync. separation and hold-off circuit useful in video

signal observation

Maximum input Voltage: 250V pp

Power suply: 220VAC

Weight 8.5 Kgs

Dimension: 320mm(W) 140mm(H) 430mm(L)

Include: Operator’s manual1, Spare fuse 2 Power cord 1, probe
Manufacture : EZ - Korea
Origin : Korea

Details

Download Cataloge


Performance Characteristics of the OS-5100
Form Factor Benchtop
Bandwidth 100 MHz
Rise time 3.5 ns
Number of Channels 2 ch
Min. Vertical Sensitivity 2 mV/div
Maximum Vertical Sensitivity 5 V/div
Vertical(or Deflection Factor) Accuracy 3 %
Input Coupling AC,DC,GND
Input Impedance 1 MOhm
Main time base - lowest 100 ns/div
Main time base - highest 200 ms/div
B Sweep Time Base (low) 100 ns/div
B Sweep Time Base (high) 0.01 ms/div
Time base Magnification factor (X) x10
Timebase accuracy 3 %
Trigger Source External,Internal
Trigger Modes Auto,Normal,TV
Trigger Sensitivity 0.5 mV
Display Type CRT Monochrome
Display Size 15.24 cm
Programmability/Connectivity of the OS-5100
User Interface Proprietary
OS-5100 Power Requirements
Input Power USA (110V/60Hz)
OS-5100 Physical Dimensions
Width 320 mm(12.59 in)
Height 140 mm(5.51 in)
Length 430 mm(16.92 in)
Weight 8.5 kg(18.73 lb)
