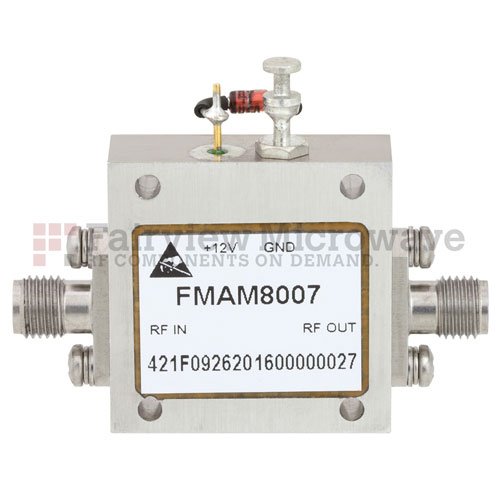

Fairview FMAM8007 17 dB增益模块放大器，工作频率范围为6 GHz至18 GHz，带SMA和SMA，20 dBm P1dB

Manuafacturer: Fairview
Model :  FMAM8007
Original: USA
Warranty : 12 month

Frequency Range: 6 GHz - 18 GHz
Voltage max: 15 Vdc
Current max: 160 mAdc
P1dB: 20 dBm
VSWR : 2:1
Gain: 17 dB
Gain Flatness : ± 0.6 dB
Noise figure: 4.5 db

datasheet
