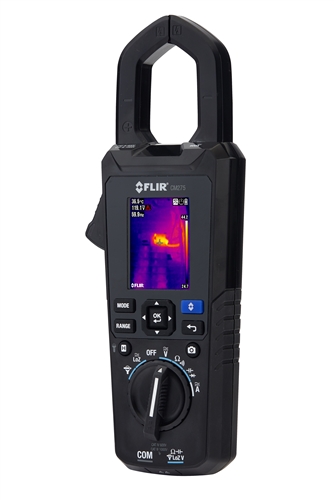

FLIR CM 275 AC/DC 红外成像钳形表 (Datalogging/Wireless)

IR Resolution: 80 x 60 pixels (4,800 pixels)
Thermal Imaging Detector: FLIR Lepton® microbolometer
Temperature Sensitivity: ≤ 150 mK
Emissivity Settings: 4 presets with custom adjustment
Temperature Accuracy: 3°C or 3%
Temperature Range: 14°F to 302°F (-10°C to 150°C)
Field of View: 50° x 38°
Laser Pointer: Yes
Focus: Fixed
Thermal Imaging Palette: Iron, Rainbow, Grayscale
Level & Span: Auto
Measurements
True RMS: Yes
Auto-ranging: Yes, with manual range option
Range/ Basic Accuracy
AC / DC Volts: 1000 V ±1.0%
VFD AC Volts : 1000 V ±1.0%
AC / DC LoZ V: 1000 V ±1.0%
AC / DC Amps: 600.0 A ±2.0%
VFD AC Amps: 600.0 A ±2.0%
AC Inrush: 600.0 A ±3.0%
Resistance: 6.000 kΩ ±1.0%
Capacitance: 1000 μF ±1.0%
Diode Test: 1.5 V ±1.5%
Flex Input AC A: 3000 A ±1.0%
Flex Input Frequency Counter: 10.00 kHz ±0.1%
Additional Measurements
Continuity Check: 30 Ω
Measuring rate: 3 samples per second
Min/Max: yes
General Information
Connectivity: Bluetooth®
Data Logging & Storage: 10 sets of 40K scalar measurements, 100 images
Jaw Opening: 35 mm (1.38 in) 1250 MCM
Auto Power Off : Yes
Worklights: Yes
Display Size: 2.4 in TFT screen
Battery : 3 AA batteries; optional TA04 Li-Poly rechargeable battery
Drop Test: 2 m
Safety Category Rating: CAT III-1000V, CAT IV-600V
Size (L x W x H) : 48.5 x 97 x 255 mm (1.9 x 3.8x 10 in)
Weight: 460 g (16 oz)
Box Contents:
Clamp Meter, batteries, silicone test leads, soft carrying case
