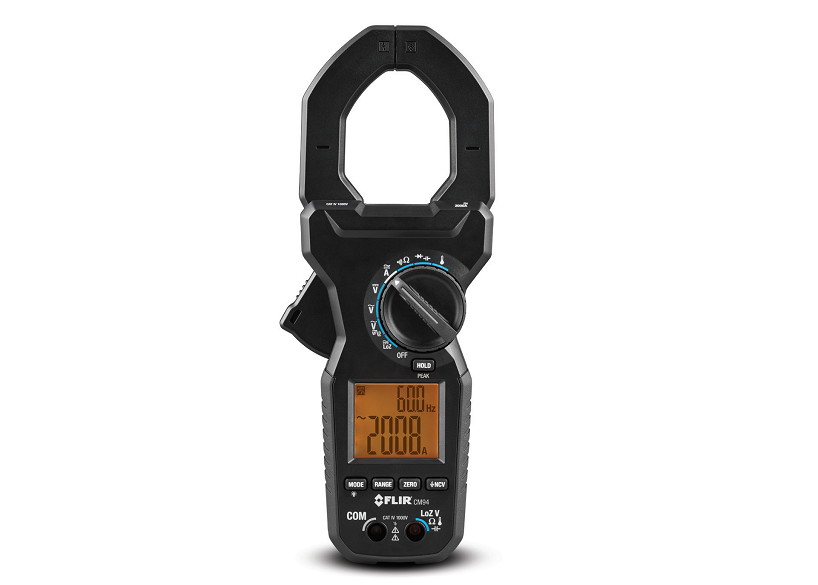

FLIR CM94 Clamp meter (AC/DC 2000A, 1000V; True RMS)

Backlight LCD:Yes

Jaw Opening: 2.2" (55mm)

Size [L × W × H]: 269 x 106 x 51 mm (10.6 x 4.2 x 2.0 in)

ENVIRONMENTAL

Drop test:  2 m

Operating Temperature: 14 °F to 122 °F (-10 °C to 50 °C)

Temperature: Range -58 to 1832 °F (-50 to 1000 °C) / Basic Accuracy ±0.3%

MEASUREMENT & ANALYSIS

AC Current: Range 200.0, 2000 A / Basic Accuracy ±2%

AC Voltage (Digital Low Pass Filter-VFD) Range 1000 V / Basic Accuracy ±2%

AC/DC Current: Range 2000 A / Basic Accuracy ±2%

AC/DC Voltage: Range 1000 V / Basic Accuracy ±1.2% / 0.5%

Capacitance: Range 60.00 nF, 600.0 nF, 6.000 uF / Basic Accuracy ±2.0% Range 60.00 uF, 6000.0 uF / Basic Accuracy ±3.5% Range 2000 uF / Basic Accuracy ±4%

Category Rating: CAT IV-1000 V

Clamp-On DC Current:  Range 200.0, 2000 A / Basic Accuracy ±2%

Continuity:  10 to 200 Ω

Diode: Range 1 V / Basic Accuracy ±1%

Frequency: Range 40.00 Hz to 400.0 Hz (ACA) / Basic Accuracy ±1% Range 50.00 Hz to 400.0 Hz (ACV) / Basic Accuracy ±1%

LoZ Mode AC Voltage: Range: 6.000, 60.00, 600.0, 1000 V Basic Accuracy: ±1.5%

LoZ Mode DC Voltage: Range: 6.000, 60.00, 600.0, 1000 V Basic Accuracy: ±1.3%

Resistance: Range 600.0, 6.000 K, 60.00 KΩ / Basic Accuracy ±0.5% Range 600.0 KΩ / Basic Accuracy ±0.8% Range 6.000 MΩ / Basic Accuracy ±1.2% Range 40.00 MΩ / Basic Accuracy ±2.3%

METER DATA

Auto Power Off: 34 minutes

Display: 3-5/6 digits 6000 counts. 3-1/2 digits 1999 counts for Hz

NCV: Yes

POWER

Battery: 2 x AA

Box contents:Test lead set, quick start guide, manual, soft carrying pouch,

banana plug Type-K thermocouple
