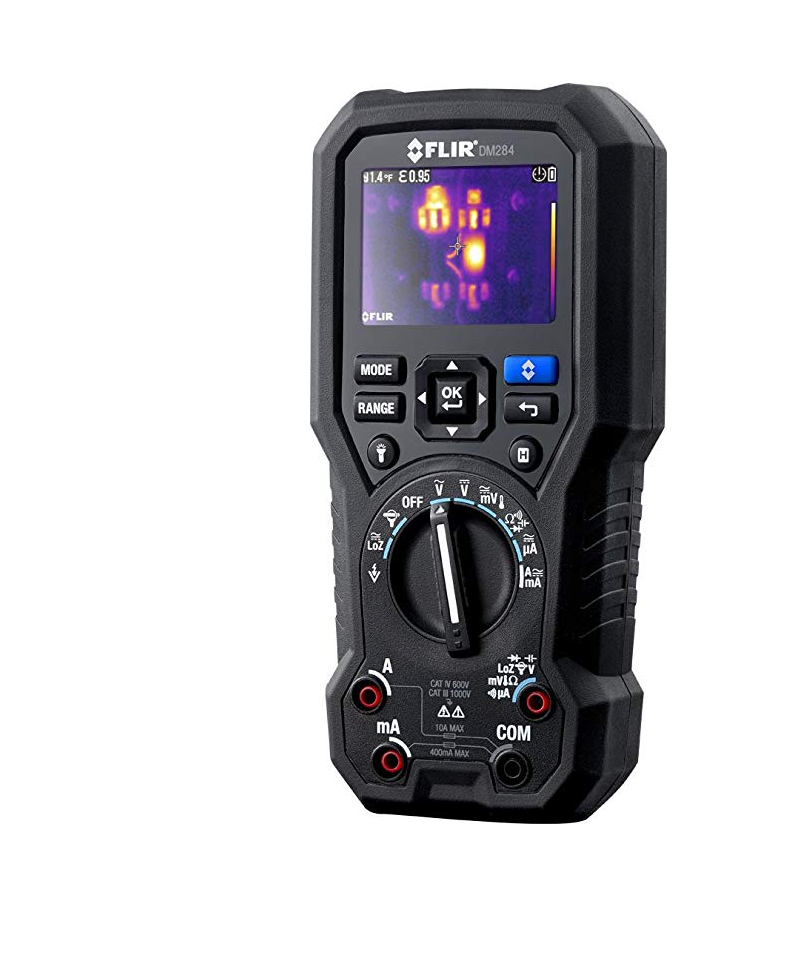

FLIR DM284 红外成像数字万用表

  • 制造商: FLIR
    Model: DM284
    来源: Taiwan
    保障: 12 month
    • 报价要求 报价要求
  • 14,100,000 VND
  • 价格合理详情请致电

    热线:   (+84) 966520220

    电话:  +84 (24) 62923267




  • 质量承诺
  • 正品保修
  • 送货到家
  • 交易简单化

Manufacturer: FLIR
Model: DM284
Made in: Taiwan
Warranty: 12 months

Thermal Imaging
- View Thermal and Electrical /Thermocouple Measurements Simultaneously: Yes
- Image Resolution: 19,200 pixels (160 x 120)
- Sensitivity: ≤ 150 mK
- Emissivity: 4 Presets with Custom Adjustment
- Accuracy: 3°C or 3.5%
- Range: 14°F to 302°F (-10°C to 150°C)
- FOV (w x h): 46° x 35°
- Laser Pointer: Yes
- Focus: Fixed
- Palette: Iron, Rainbow, Greyscale
- Level & Span: Auto\
Measurement
- AC / DC Volts: Range: 1000V; Accurracy: 1% / 0.09%
- AC / DC mVolt: Range: 600.0mV; Accurracy: 1% / 0.5%
- VFD: Range: 1000V; Accurracy: ±1.0%
- AC / DC: Range: LoZ V 1000V; Accurracy: ±1.5%
- AC / DC: Range: Amps 10.00A; Accurracy: ±1.5%
- AC / DC: Range: mAmps 400.0mA; Accurracy: ±1.5%
- AC / DC: Range: µAmps 4,000µA; Accurracy: ±1.0%
- Resistance: 50 MΩ; Accurracy: 0.9%
- Continuity: Yes
- Capacitance: 10.00mF; Accurracy: 1.9%
- Diode: Yes
- Min/Max/Avg: Yes
- Flex Clamp Range: 3000A AC (Optional TA72/74); Accurracy: ± 3.0% + 5 digits
- Frequency Range: 99.99kHz; Accurracy: 0.1%
- Thermocouple Type K: Range: -40°F to 752°F(-40°C to 400°C); Accuracy: ±1.0% + 5.4°F (DMM),±1.0% + 9°F (IGM)
- Drop Test: 3m
- IP rating: IP54
- Worklights: Yes
- Display Size: 2.8"
- Battery Life Minimum(all modes on) 3 hrs Alkaline, 12 hrs optional rechargeable battery (TA04-KIT)
- Auto Power Off: Yes
- Safety: CAT III 1000 V, CAT IV 600 V
- Size (H x W x L): 200 x 95 x 49mm
- Weight: 537g
Unit included:
- DM284 Type K Thermocouple
- Premium Silicone Test Leads
- CAT IV Insulated Alligator Probes
- Test Lead Storage/Tripod Accessory
- Four AAA Batteries and Documentation
Optional Accessories
- FLIR TA04-KIT - Lithium-Polymer Rechargeable Battery Kit
