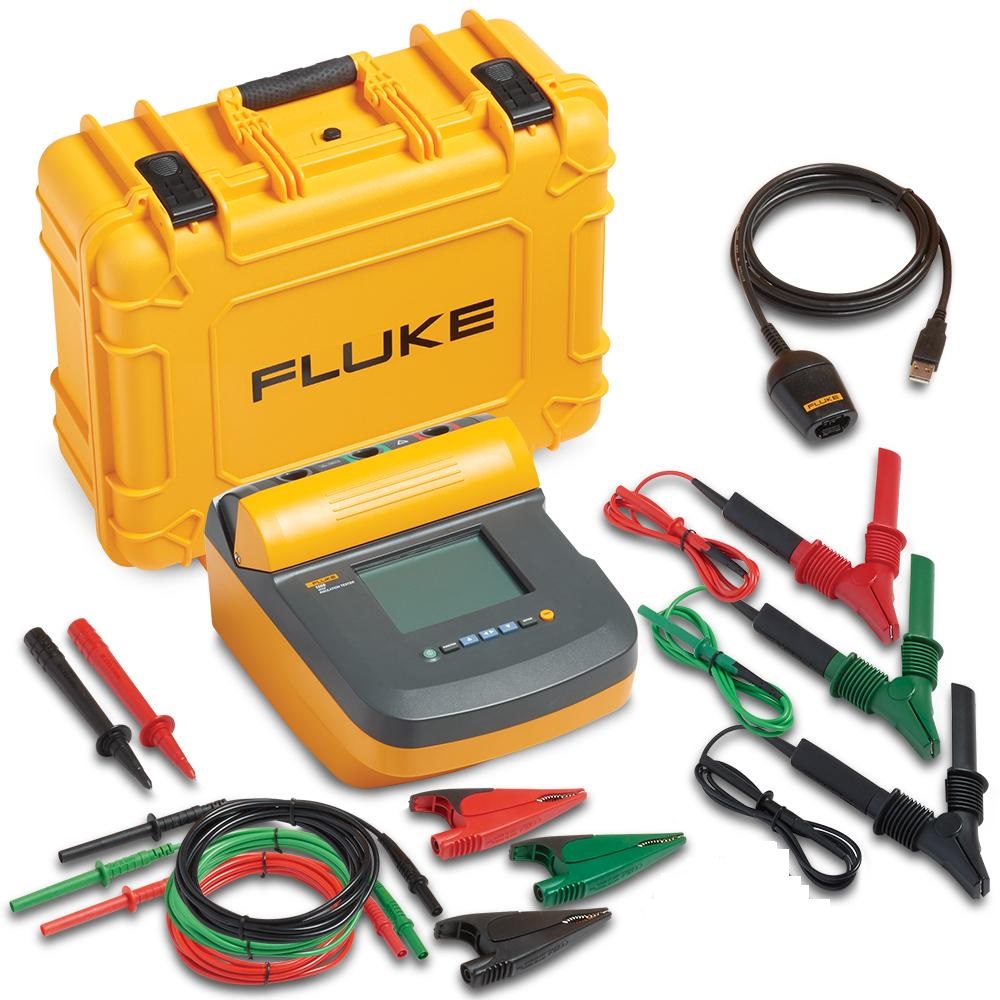

FLUKE 1555/KIT 绝缘电阻测试仪套装 (10kV, 2TΩ)

Test voltage (dc): 250V, 500V, 1000V, 2500V, 5000V, 10000V /+10 %

Range: 200 kΩ to 2 TΩ /5%

Bar graph range: 0 to 1 TΩ

Leakage current measurement:  1 nA to 2 mA /± 5 % + 2 nA

Capacitance measurement: 0.01 uF to 15.00 μF /15 % rdg + 0.03 μF

Timer: 0 to 99 minutes

Live circuit warning: 30 V to 660 V ac/dc /± 15 % + 2 V

Display: 75 mm x 105 mm

Power: 12 V lead-acid rechargeable battery, Yuasa NP2.8-12

Charger Input (AC): harger Input (AC) 85 V to 250 V ac 50/60 HZ 20 VA

Dimensions: 170 mm x 242 mm x 330 mm (6.7 in x 9.5 in x 13 in)

Weight: 3.6 kg (7.94 lb)

Enclosure sealing : IP40

Input overload protection: 1000 V ac

include: Set Test Cables with Alligator Clips (red, black, green), Infrared adapter with interface cable,FlukeView Forms Basic CD-ROM, AC Power Cord, English Manual, Users Manual on CD-ROM, Quick Reference Card,  Software License Agreement, Registration Card, FlukeView Forms Installation Guide, USB-IR Cable Installation Guide,  Set Ruggedized Alligator Clips

Details

Electrical specifications

The tester’s accuracy is specified for one year after calibration at operating temperatures of 0 °C to 35 °C. For operating temperatures outside the range (-20 °C to 0 °C and 35 °C to 50 °C), add ± .25 % per °C, except on the 20 % bands add ± 1 % per °C.

Insulation resistance measurement

Test voltage (dc)

Range (dc)

Accuracy (± reading)

250 V < 200 kΩ
200 kΩ to 5 GΩ
5 GΩ to 50 GΩ
> 50 GΩ
unspecified
5 %
20 %
unspecified
500 V   200 kΩ
200 kΩ to 10 GΩ
10 GΩ to 100 GΩ
> 100 GΩ
unspecified
5 %
20 %
unspecified
1000 V  < 200 kΩ
200 kΩ to 20 GΩ
20 GΩ to 200 GΩ
> 200 GΩ
unspecified
5 %
20 %
unspecified
2500 V  < 200 kΩ
200 kΩ to 50 GΩ
50 GΩ to 500 GΩ
> 500 GΩ
unspecified
5 %
20 %
unspecified
5000 V  < 200 kΩ
200 kΩ to 100 GΩ
100 GΩ to 1 TΩ
> 1 TΩ
unspecified
5 %
20 %
unspecified
10000 V
(1555 only)
 < 200 kΩ
200 kΩ to 200 GΩ
10 GΩ to 2 TΩ
> 2 TΩ
unspecified
5 %
20 %
unspecified
Bar graph range 0 to 1 TΩ
Insulation test voltage accuracy -0 %, +10 % at 1 mA load current
Induced ac mains current rejection 2 mA maximum

Charging rate for capacitive load

5 seconds per μF

Discharge rate for capacitive load

1.5 s/μF

Leakage current measurement

Range: 1 nA to 2 mA

Accuracy: ± (5 % + 2 nA)

Capacitance measurement

Range: 0.01 uF to 15.00 μF

Accuracy: ± (15 % rdg + 0.03 μF)

Timer

Range: 0 to 99 minutes

Resolution Accuracy:
Setting: 1 minute
Indication: 1 second

Live circuit warning

Warning Range:
30 V to 660 V ac/dc,
50/60 Hz

Voltage Accuracy:
± (15 % + 2 V)



General specifications

Display 75 mm x 105 mm
Power 12 V lead-acid rechargeable battery, Yuasa NP2.8-12
Charger Input (AC) Charger Input (AC) 85 V to 250 V ac 50/60 HZ 20 VA
This Class II (double insulated) instrument is supplied with a Class 1 (grounded) power cord. The protective earth terminal (ground pin) is not connected internally. The extra pin is for added plug retention only.
Dimensions 170 mm x 242 mm x 330 mm (6.7 in x 9.5 in x 13 in)
Weight 3.6 kg (7.94 lb)
Temperature (operating) -20 ºC to 50 ºC (-4 ºF to 122 ºF)
Temperature (storage) -20 ºC to 65 ºC (-4 ºF to 149 ºF)
Humidity 80 % to 31 ºC decreasing linearly to 50 % at 50 ºC
Altitude 2000 m
Enclosure sealing IP40
Input overload protection 1000 V ac
Electromagnetic compatibility EN 61326
Certifications
Safety compliance CAT III 1000 V, CAT IV 600 V
Pollution degree 2
