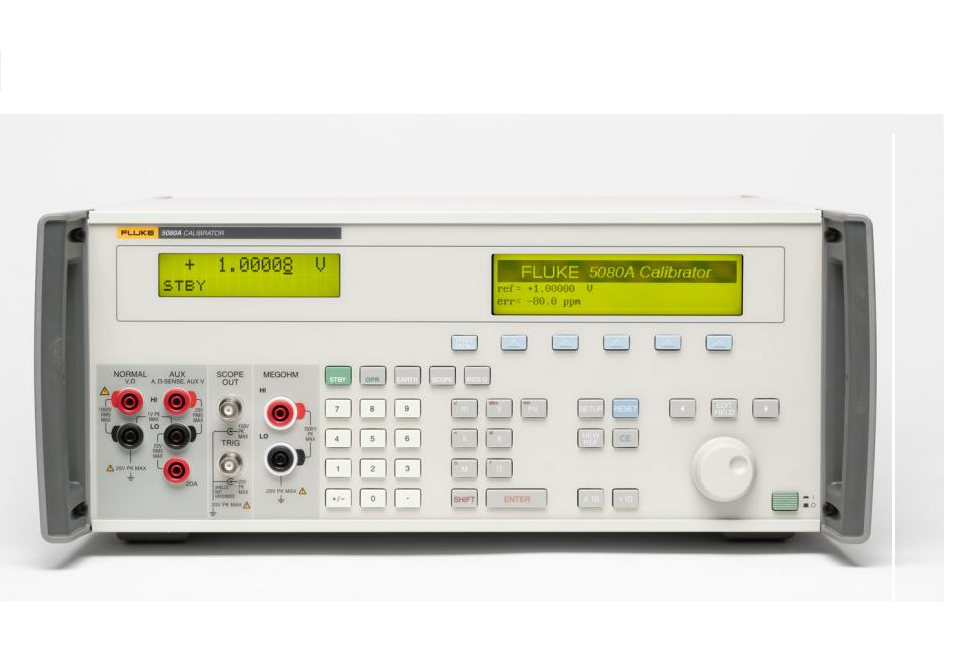

Fluke 5080A 多产品校准器

Voltage DC Range: 0 to ±1020V/±0.01% of setting
Current DC Range: 0 to ±20.5A/ ±0.05% of setting
Resistance Range: 0 to 190 MO, 19 values in x1 and x1.9 : ±0.025% of setting
Voltage AC Range: 1 mV to 1020V (45Hz to 1 kHz, Sine)/: ±0.1% of setting
Current AC Range:29 mA to 20.5A (45 Hz to 1 kHz, Sine)/ ±0.1% of setting
DC Power Range:10.9 mW to 20.5 kW/ ±0.11% of setting
AC Power Range: 10.9 mW to 20.5 kW (45-65 Hz, PF=)/ ±0.36% of setting
Phase Range: 0 to ± 179.99° (45 Hz to 1 kHz) / ±0.25° of setting
Frequency     Range: 45 Hz to 1 kHz / ±50 ppm of setting
Standard Interfaces:      RS-232 and Ethernet
Line Power: Line Voltage (selectable): 100V, 120V, 220V, 240V (47 to 63 Hz)
Power Consumption: 600 VA
Dimensions: 19.3 cm x 43.2 cm x 53.8 cm
Weight: 22 kg

Detail

Datasheet

Option

5080A/MEG: Multi-Product calibrator with Megohm Meter Calibration Option
5080A/SC: Multi-Product Calibrator with Oscilloscope Calibration Option
5080A/SC/MEG: Multi-Product Calibrator with Megohm Meter and Oscilloscope Calibration Option
5080/CAL: calibration software

 9100-200: 10/50 Turn Current Coil
5500A/COIL: 50-Turn Current Coil
5080A: Megohm Meter Calibration Option
5080A Megohm Meter Calibration Option
5080A/CASE: 5080A/CASE



Technical Specifications

Voltage DC



Range: 0 to ±1020V



Best 1 Year Specification: ±0.01% of setting

Current DC



Range: 0 to ±20.5A



Best 1 Year Specification: ±0.05% of setting

Resistance



Range: 0 to 190 MO, 19 values in x1 and x1.9



Best 1 Year Specification: ±0.025% of setting

Voltage AC



Range: 1 mV to 1020V
45Hz to 1 kHz, Sine



Best 1 Year Specification: ±0.1% of setting

Current AC



Range:29 mA to 20.5A
45 Hz to 1 kHz, Sine



Best 1 Year Specification: ±0.1% of setting

DC Power



Range:10.9 mW to 20.5 kW



Best 1 Year Specification: ±0.11% of setting

AC Power



Range: 10.9 mW to 20.5 kW
45-65 Hz, PF=1



Best 1 Year Specification: ±0.36% of setting

Phase



Range: 0 to ± 179.99°
45 Hz to 1 kHz



Best 1 Year Specification: ±0.25° of setting

Frequency



Range: 45 Hz to 1 kHz



Best 1 Year Specification: ±50 ppm of setting



General Specifications

Warm up Time



Twice the time since last warmed up, to a maximum of 30 minutes

Settling Time



Less than 5 seconds for all functions and ranges except as noted

Standard Interfaces



RS-232 and Ethernet

Temperature Performance

Operating: 0°C to 50°C

Calibration (tcal):15°C to 35°C

Storage:-20°C to +70°C

Temperature Coefficient



Temperature coefficient for temperatures outside tcal ±5 °C is 10 % of the stated specification per °C for temperatures in the range of 0 °C to 35 °C. Above 35 °C, the temperature coefficient is 20 % of the stated specification per °C.

Relative Humidity

Operating: <80% to 30°C, <70% to 40°C, <40% to 50°C

Storage:<95%, non-condensing

Altitude

Operating: 2,000m (6,500 ft) maximum

Non-operating: 12,200m (40,000 ft) maximum

Safety

Meets EN. 61010-1:2001, CAN/CSA-C22.2 No. 61010-1-04, UL 61010-1: 2004

Analog Low Isolation

20V

EMC

Meets EN613261:2006.

Line Power

Line Voltage (selectable): 100V, 120V, 220V, 240V

Line Frequency: 47 to 63 Hz

Line Voltage Variation: + 10% about line voltage setting

Power Consumption

600 VA

Calibration Documentation

Report of calibration with data included; 17025 accredited report optional

Dimensions

Height:19.3 cm (7.6 in)

Width:43.2 cm (17 in), 44.3 cm (17.5 in) including handles

Depth:53.8 cm (21.2 in)

Weight (without options)

22 kg (48 lbs.)

Absolute Uncertainty Definition

The specifications include stability, temperature coefficient, linearity, line and load regulation, and the traceability of the external standards used for calibration. It is not necessary to add anything to determine the total specification for the temperature range indicated.

Specification Confidence Interval

99%
