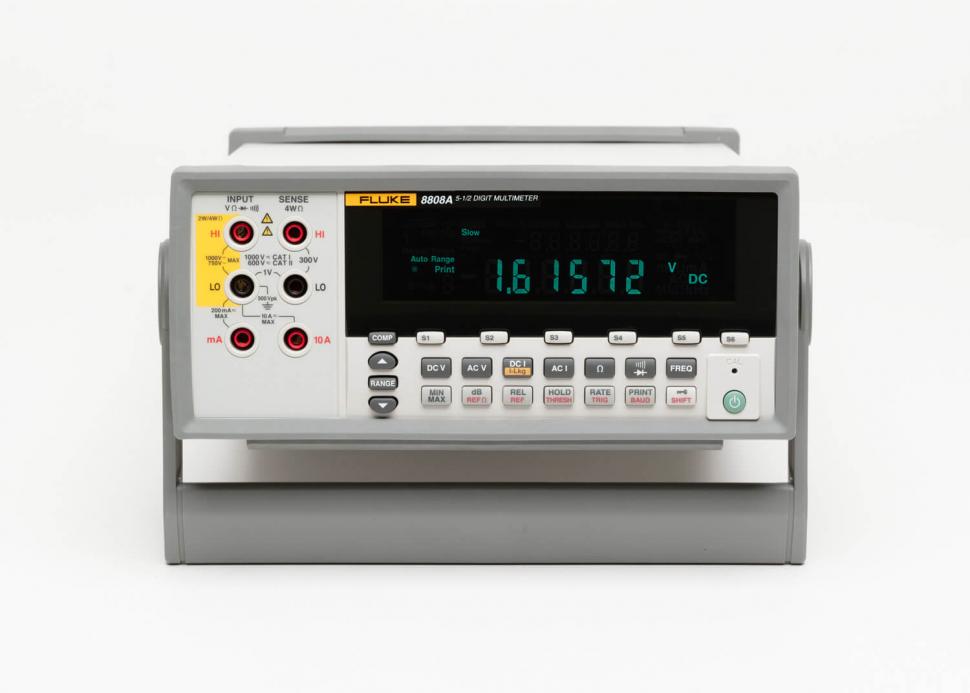

Fluke Calibration 8808A 5.5位万用表





Technical Specifications

Display



 VFD multi segment display, dual readings

Resolution



 5.5 digits

V dc

Ranges:

 200 mV to 1000 V

Max. resolution:

 1 uV

Accuracy:

 0.015 + 0.003

V ac

Ranges:

 200 mV to 750 V

Max resolution:

 1 uV

Accuracy:

 0.2 + 0.05

Frequency:

 20 Hz to 100 KHz

Resistance

2x4 Wire:

 Yes

Ranges:

 200 Ω to 100 MΩ

Max resolution:

 1 mΩ

Accuracy:

 0.02 + 0.003

A dc

Ranges:

 200 µA to 10 A

Max resolution:

 1 nA

Accuracy:

 0.02 + 0.005

A ac

Ranges:

 20 mA to 10 A

Max resolution:

 100 uA

Accuracy:

 0.3 + 0.06

Frequency:

 20 Hz to 2 kHz

Frequency

Ranges:

 20 Hz to 1 MHz

Max resolution:

 0.1 mHz

Accuracy:

 0.01 %

Math Functions

dB/dBm:

 Yes

Advanced Functions



 Limit compare test, with pass and fail indicators

Interfaces



 RS-232, USB with optional adapter

Programming Languages/Modes



 Simplified ASCII, Fluke 45 remote command emulation

General Specifications

Weight



 2.1 kg (4.6 lbs)

Size (HxWxD)



 88 mm x 217 mm x 297 mm (3.46 in x 8.56 in x 11.7 in)

Safety



 Designed to comply with EN 61010-1:2001, ANSI/ISA 61010-1 (S82.02.01):2004, UL 61010-1:2004, AN/CSA C22.2 No. 61010.1:2004

Warranty



 Three years

Includes:

  • Meter
  • TL71 test leads
  • line cord
  • USB to RS232 interface adapter cable
  • FlukeView Forms Basic Software
  • statement of cal practices
  • WEEE information sheet
  • Warranty statement
  • Getting Started guide (English, French, German, Spanish, Italian, Simplified Chinese, Japanese)
  • CD Rom with user manual (English)
