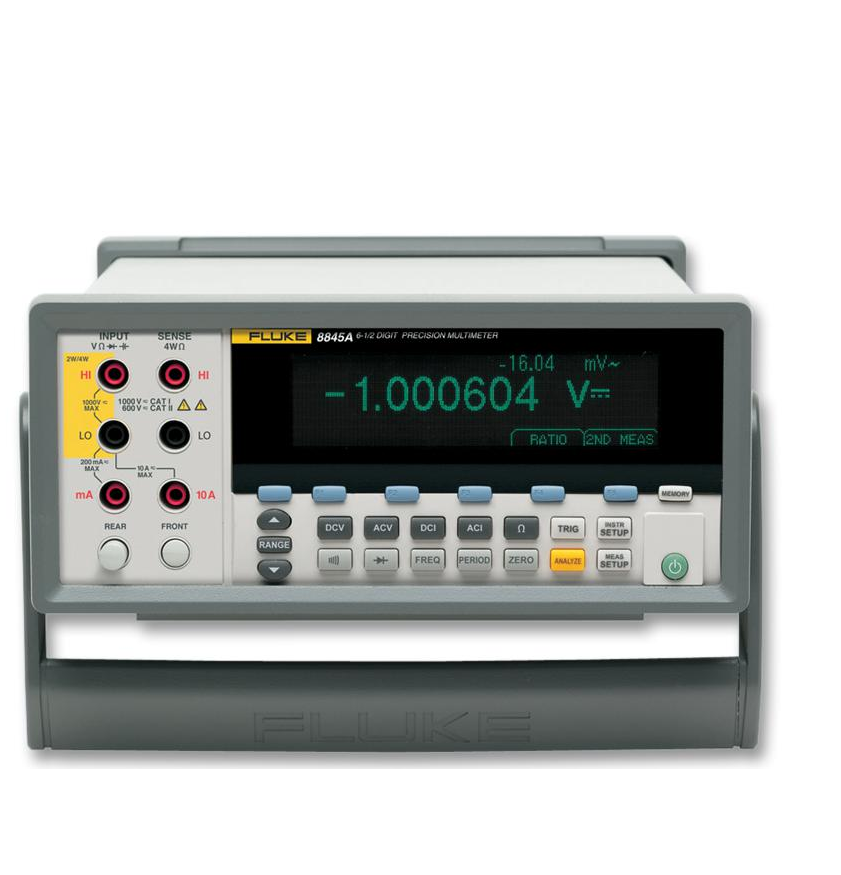

Fluke Calibration 8845A / 8846A 六位半精密数字多用表

 VFD Dot Matrix

 6.5 Digits

Ranges:

 100 mV to 1000 V

Max. Resolution:

 100 nV

Accuracy:

 8845A: 0.0035 + 0.0005 (% measurement + % of range)

 8846A: 0.0024 + 0.0005 (% measurement + % of range)

Ranges:

 8845A: 100 mV to 750 V

 8846A: 100 mV to 1000 V

Max. Resolution:

 100 nV

Accuracy:

 8845A: 0.06 + 0.03 (% measurement + % of range)

 8846A: 0.06 + 0.03 (% measurement + % of range)

Frequency:

 3 Hz to 300 KHz

2x4 Wire:

 Yes

Ranges:

 8845A: 100 Ω to 100 MΩ

 8846A: 10 Ω to 1 GΩ

Max. Resolution:

 8845A: 100 μΩ

 8846A: 10 μΩ

Accuracy:

 8845A: 0.010 + 0.001 (% measurement + % of range)

 8846A: 0.010 + 0.001 (% measurement + % of range)

Ranges:

 100 μA to 10 A

Max. Resolution:

 100 pA

Accuracy:

 0.050 + 0.005 (% measurement + % of range)

Ranges:

 8845A: 10 mA to 10 A

 8846A: 100 mA to 10 A

Max. Resolution:

 8845A: 10 nA

 8846A: 100 pA

Accuracy:

 0.10 + 0.04 (% measurement + % of range)

Frequency:

 3 Hz to 10 kHz

Ranges:

 8845A: 3 Hz to 300 kHz

 8846A: 3 Hz to 1 MHz

Max. Resolution:

 1 μHz

Accuracy:

 0.01 %

 Yes

Ranges:

 8846A: 1 nF to 0.1 F

Max. Resolution:

 8846A: 1 pf

Accuracy:

 8846A: 1 %

Type:

 8846A: Platinum RTD

Ranges:

 8846A: -200 °C to +600 °

Max. Resolution:

 8846A: 0.01 °

Accuracy:

 8846A: 0.06 °

 NULL, Min/Max/Average, Std Dev

dB/dBm:

 Yes

Statistics/Histogram:

 Yes

Trendplot:

 Yes

Limit Test:

 Yes

USB Memory:

 8846A: USB memory drive port

Real Time Clock:

 8846A: Yes

Interfaces:

 RS 232, IEE-488.2, Ethernet, USB (with optional adaptor)

Programming Languages/Modes:

 8846A: SCPI (IEEE-488.2), Agilent 34401A, Fluke 45
