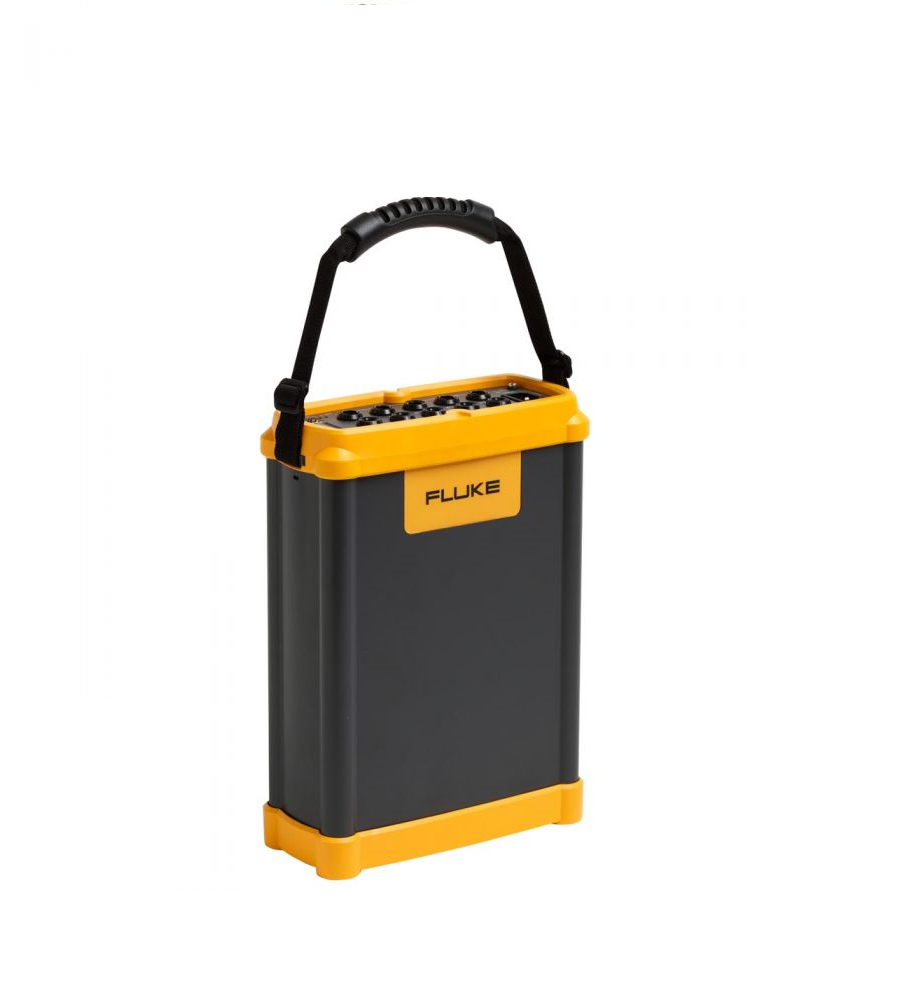

Fluke 1750 电能记录仪

  • 制造商: FLUKE
    Model: 1750
    • 报价要求 报价要求
  • 联系
  • 价格合理详情请致电

    热线:   (+84) 966520220

    电话:  +84 (24) 62923267




Measurement types: One Phase Plus Neutral, One Phase IT No Neutral, One Phase Split Phase, Three Phase Wye, Three Phase Delta, Three Phase IT, Three Phase High Leg, Three Phase Open Leg, 2 Element Delta, 21/2 Element Wye
Input channels: Voltage: 4 channels, ac/dc; Current: 5 channels
Voltage channels: Input resistance: 2 MΩ; Input capacitance: < 2 0 pF
Current input characteristics: 2 V rms = full scale, 1 MΩ Input Impedance for ferro CTs, low impedance for Flexi-CTs
Measuring method: Simultaneous digital sampling of voltage and current. Digital PLL synchronized sampling, internal frequency reference used during voltage drops.
PLL-synchronization source: The PLL synchronizes to the A-N voltage for wye power types, and to the A-B voltage for delta power types. All listed power types can be characterized as either wye or delta.
PLL lock range: 42.5 to 69 Hz
Sampling frequency: Voltage and current: 2 56 samples/cycle Inter-harmonics per IEC 61000-4-7: 2 560 points/10 cycles (50 Hz), 3072 points/12 cycles (60 Hz) Transient Voltage: 5 MHz
A/D resolution: Voltage and current: 2 4 bits; Transient voltage: 14 bits
Voltage measurement range: AC voltage: 1000 V rms ± 10 % over range; DC voltage: ± 1000 V + 10 % over range
Voltage crest factor: 3 or less
Current measurement range: Depends on current probe used
Current crest factor: 4 or less
- RMS voltage
+ Measurement type: True rms calculated continuously: every cycle, every 1/2 cycle, and every 10 or 12 cycles at 50 or 60 Hz respectively, as required by IEC 61000-4-30.
+ Measurement uncertainty: AC: ± 0.2 % reading ± 0.1 % full scale, above 50 V rms; DC: ± 0.5 % reading ± 0.2 % full scale, above 50 V dc
- RMS current
+ Measurement type: True rms calculated continuously: every cycle, every 1/2 cycle, and every 10 or 12 cycles at 50 or 60 Hz respectively, as required by standards
- Transient voltage (impulse)
Measurement type: Waveshape sampling
Full scale: 8000 V pk
Sample resolution: 200 nS
Measurement uncertainty: ± 5 % reading ± 2 0 V (test parameters: 1000 V dc, 1000 V rms, 100 kHz)
Communications protocol: Bluetooth SPP, TCP/IP over Ethernet

Details

Manual

Technical Specifications

Power quality measurement standards

Conformance

 IEC 61999-1-4 Class 1, IEC 61000-4-30 Class A or B depending on measurement function, IEEE519, IEEE1159, IEEE1459 and EN50160

Clock/calendar

 Leap years, 2 4-hour clock

Real-time clock accuracy

 Not more than ± 1 s/day

Internal memory capacity for data

 At least 2 GB

Maximum recording period

 At least 31 days

Measurement time control

 Automatic

Maximum number of events

 Limited only by the size of the internal memory

Power requirements

 100 to 2 40 V rms ± 10 %, 47-63 Hz, 40 W

Operating time during interruptions (internal UPS operation)

 5 minutes per interruption, 60 minutes total operating time without recharging

Dimensions

 215 mm x 310 mm x 35 mm (8.5 in x 12.2 in x 3.5 in)

Mass (weight)

 6.3 kg (14 lb)

Input

Measurement types

 One Phase Plus Neutral, One Phase IT No Neutral, One Phase Split Phase, Three Phase Wye, Three Phase Delta, Three Phase IT, Three Phase High Leg, Three Phase Open Leg, 2 Element Delta, 21/2 Element Wye

Input channels

 Voltage: 4 channels, ac/dc



 Current: 5 channels

Voltage channels

 Input resistance: 2 MΩ



 Input capacitance: < 2 0 pF

Current input characteristics

 2 V rms = full scale, 1 MΩ Input Impedance for ferro CTs, low impedance for Flexi-CTs

Measuring method

 Simultaneous digital sampling of voltage and current. Digital PLL synchronized sampling, internal frequency reference used during voltage drops.

Synchronization and sampling

PLL-synchronization source

 The PLL synchronizes to the A-N voltage for wye power types, and to the A-B voltage for delta power types. All listed power types can be characterized as either wye or delta.

PLL lock range

 42.5 to 69 Hz

Sampling frequency

 Voltage and current: 2 56 samples/cycle Inter-harmonics per IEC 61000-4-7: 2 560 points/10 cycles (50 Hz), 3072 points/12 cycles (60 Hz) Transient Voltage: 5 MHz

A/D resolution

 Voltage and current: 2 4 bits



 Transient voltage: 14 bits

Voltage and current measurements

Voltage measurement range

 AC voltage: 1000 V rms ± 10 % over range



 DC voltage: ± 1000 V + 10 % over range

Voltage crest factor

 3 or less

Current measurement range

 Depends on current probe used

Current crest factor

 4 or less

RMS voltage

Measurement type

 True rms calculated continuously: every cycle, every 1/2 cycle, and every 10 or 12 cycles at 50 or 60 Hz respectively, as required by IEC 61000-4-30.

Measurement uncertainty

 AC: ± 0.2 % reading ± 0.1 % full scale, above 50 V rms



 DC: ± 0.5 % reading ± 0.2 % full scale, above 50 V dc

RMS current

Measurement type

 True rms calculated continuously: every cycle, every 1/2 cycle, and every 10 or 12 cycles at 50 or 60 Hz respectively, as required by standards

Transient voltage (impulse)

Measurement type

 Waveshape sampling

Full scale

 8000 V pk

Sample resolution

 200 nS

Measurement uncertainty

 ± 5 % reading ± 2 0 V (test parameters: 1000 V dc, 1000 V rms, 100 kHz)

Voltage swell (rms swell)

Measurement type

 True rms (one cycle calculation by overlapping each half cycle - voltage between lines is measured for 3P3W lines and phase voltage is measured for 3P4W lines)

Displayed data

 Amplitude and duration of swell

Measurement

 Same as rms voltage

Voltage dip (rms sag)

Measurement type

 True rms (one cycle calculation by overlapping each half cycle - voltage between lines is measured for 3P3W lines and phase voltage is measured for 3P4W lines)

Displayed data
