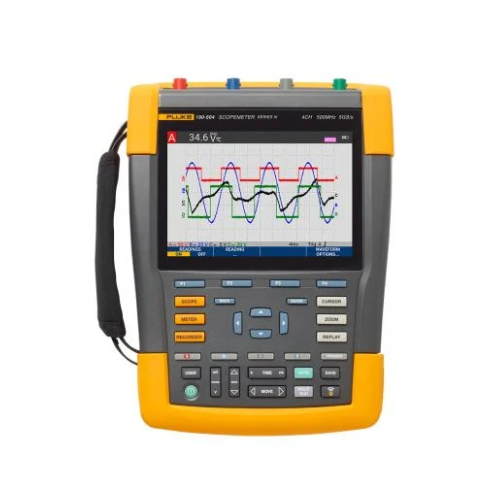

FLUKE 190-504-III 示波器

Number of channels: 4

Bandwidth: 500 MHz

Rise time: 0.7 ns

Maximum real- time sample rate (sampled simultaneously): 5 GS/s (single ch) or 2.5 GS/s (2ch) or 1.25 GS/s (4ch)

Time base range: 1 ns/div to 4 s/div

Meter inputs: Via BNC scope inputs

Number of readings: Up to 4 automatic scope measurements simultaneously

Maximum resolution: ± 999 counts (frequency: 9999 counts)

Input impedance: 1 MΩ (± 1 %) // 15 pF (± 2.25 pF)
