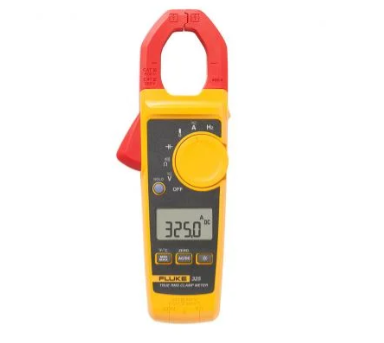

FLUKE 325 True-rms Clamp Meter (325/ESPR, True RMS, 400A)

ACA: 40.00A , 400.0 A /2 %

DCA: 40.00A , 400.0 A /2 %

ACV: 600.0 V /1.5 %

DCV: 600.0 V /1.0 %

R: 400.0 Ω/ 4000 Ω /1.0 %

C: 100.0 μF to 1000 μF

F: 5.0 Hz to 500.0 Hz

Temperature: -10.0 °C to 400.0 °C

Continuity: 70 Ω

AC response: True-rms

Data hold: Yes

Size: H x W x D (mm): 207 x 75 x 34

Max wire diameter: 30 mm

Weight:  208 g

Includes: Test leads, Soft case,  manual


Detail



Specifications



323

324

325

AC current

Range

400.0 A

40.00 A/400.0 A

40.00 A/400.0 A

Accuracy

2 % ± 5 digits
(45 Hz to 65 Hz)
2.5 % ± 5 digits
(65 Hz to 400 Hz)

1.5 % ± 5 digits
(45 Hz to 400 Hz)
Note: Add 2 % for
position sensitivity

2 % ± 5 digits
(45 Hz to 65 Hz)
2.5 % ± 5 digits
(65 Hz to 400 Hz)

DC current

Range

-

-

40.00 A/400.0 A

Accuracy

-

-

2 % ± 5 digits

AC voltage

Range

600.0 V

600.0 V

600.0 V

Accuracy

1.5 % ± 5 digits

1.5 % ± 5 digits

1.5 % ± 5 digits

DC voltage

Range

600.0 V

600.0 V

600.0 V

Accuracy

1.0 % ± 5 digits

1.0 % ± 5 digits

1.0 % ± 5 digits

Resistance

Range

400.0 Ω/ 4000 Ω

400.0 Ω/ 4000 Ω

400.0 Ω/ 4000 Ω/ 40.00 kΩ

Accuracy

1.0 % ± 5 digits

1.0 % ± 5 digits

1.0 % ± 5 digits

Continuity

≤ 70 Ω

≤ 30 Ω

≤ 30 Ω

Capacitance

-

100.0 μF to 1000 μF

100.0 μF to 1000 μF

Frequency

-

-

5.0 Hz to 500.0 Hz

AC response

True-rms

True-rms

True-rms

Backlight

-

Yes

Yes

Data hold

Yes

Yes

Yes

Contact temperature

-

-10.0 °C to 400.0 °C
(14.0 °F to 752.0 °F)

-10.0 °C to 400.0 °C
(14.0 °F to 752.0 °F)

Min/Max

-

-

Yes

Size

H x W x D (mm)

207 x 75 x 34

207 x 75 x 34

207 x 75 x 34

Max wire diameter

30 mm (600 MCM)

30 mm (600 MCM)

30 mm (600 MCM)

Weight

265 g

208 g

283 g

Category rating

CAT III 600 V
CAT IV 300 V

CAT III 600 V
CAT IV 300 V

CAT III 600 V
CAT IV 300 V
