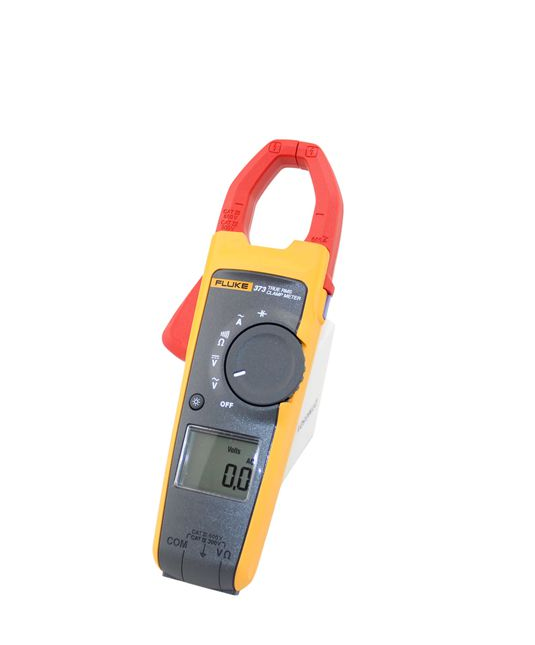

FLUKE 373 交流钳表 (600A; True RMS)

ACA: 600A /0.1A /2% ± 5 digits

ACV: 600V /0.1V /1% ± 5 digits

DCV: 600V /0.1V /1% ± 5 digits

R: 6000 Ω /0.1 Ω /1% ± 5 digits

C: 10 µF to 1000 µF /1 µF /1.9% ± 2 digits

True-RMS: yes

Continuity : yes

Hold: yes

Backlight: yes

Include: Soft carrying case,Test Leads,5xAA Alkaline batteries, User Manual

Diameter conductor: 1.3" or 34 mm max

Size: 10.905 x 3.464 x 1.629 in (277 x 88 x 4 mm)

Weight:            12 oz. (350g)

Include: Soft carrying case,Test Leads,5xAA Alkaline batteries, User Manual

Detail

Features and benefits

  • 600 A ac current measurement with fixed jaw
  • 600 V ac and dc voltage measurement
  • State of the art signal processing allows for use in noisy electrical environments while providing stable readings
  • CAT IV 300 V, CAT III 600 V
  • True-rms ac voltage and current for accurate measurements on non-linear signals
  • Large, easy to read backlight display automatically sets the correct measurement range so you do not need to change the switch positions while taking a measurement
  • Three-year warranty
  • Soft carrying case

Safety conformance
EN/IEC 61010-1:2001; 600V CAT III, 300V CAT IV

What’s the difference between the clamp meter models?

  Fluke-365 Fluke-373 Fluke-374 Fluke-375 Fluke-376 Fluke-381
Measure ac current 200.0 A 600.0 A 600.0 A 600.0 A 999.9 A 999.9 A
Measure ac current via iFlex     2500 A 2500 A 2500 A 2500 A
Measure ac voltage 600.0 V 600.0 V 600.0 V 600.0 V 1000.0 V 1000.0 V
Measure continuity ≤ 30 Ω ≤ 30 Ω ≤ 30 Ω ≤ 30 Ω ≤ 30 Ω ≤ 30 Ω
Measure dc current 200.0   600.0 600.0 999.9 999.9
Measure dc voltage 600.0 V   600.0 V 600.0 V 1000.0 V 1000.0 V
Measure resistance 6,000 Ω 6,000 Ω 6,000 Ω 60k Ω 60k Ω 60k Ω
Measure frequency       500 Hz 500 Hz 500 Hz
Measure inrush     100 mS 100 mS 100 mS 100 mS
Work in poorly lit areas Backlight Backlight Backlight Backlight Backlight Backlight
Measure non-linear loads True-rms True-rms True-rms True-rms True-rms True-rms



373 Data Sheet »
