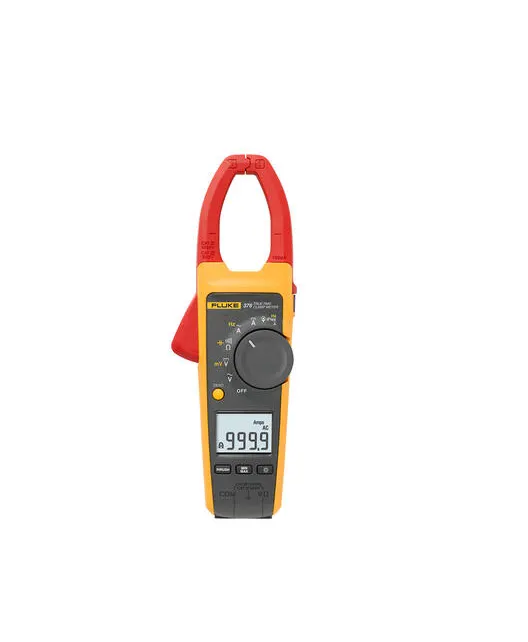

FLUKE 376 交直流数字钳形表 (2500A)

ACA  (jaw): 999.9 A  /0.1A / 2 % ± 5 digits

ACA (iFlex): 2500 A /0.1A /3 % ± 5 digits

DCA: 999.9 A /0.1A /2 % ± 5 digits

ACV: 1000 V /0.1V /1.5 % ± 5 digits

DCV: 1000 V /0.1mV /1 % ± 5 digits

R: 60,000 Ω  /0.1Ω  /1 % ± 5 digits

f: 500 Hz /0.1Hz /0.5 % ± 5 digits

C:1000 µF / 1µF / 1 % ± 4 digits

True-RMS: yes

Continuity: yes

Hold:yes

Backlight: yes

Min/Max/Avg: yes

Inrush: yes

Low pass filter:yes

Include:Soft carrying case,18-inch iFlex probe,2xAA Alkaline batteries,Test Leads, User Manual

Detail
Specifications
Function Range Resolution Accuracy
AC Current via jaw 999.9 A 0.1A 2 % ± 5 digits
AC current via iFlex 2500 A 0.1A 3 % ± 5 digits
DC current 999.9 A 0.1A 2 % ± 5 digits
AC Voltage 1000 V 0.1V 1.5 % ± 5 digits
DC Voltage 1000 V 0.1mV 1 % ± 5 digits
Resistance 60,000 Ω 0.1Ω 1 % ± 5 digits
Frequency 500 Hz 0.1Hz 0.5 % ± 5 digits
Capacitance 1000 µF 1µF 1 % ± 4 digits
True-RMS Included
Continuity Included
Hold Included
Backlight Included
Min/Max/Avg Included
Inrush Included
Low pass filter Included
Wire capacity 750 MCM or 2-500 MCM
Safety rating CAT III 1000 V, CAT IV 600 V

376 Data Sheet »
