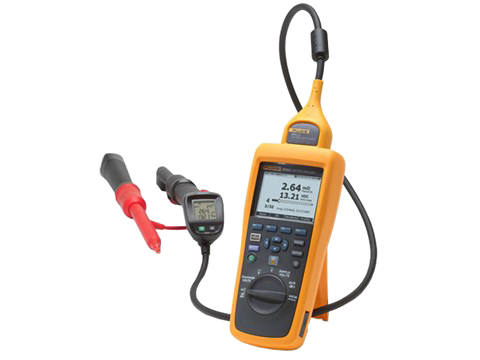

Fluke 500 电池分析仪

Battery Resistance:
Vdc:
Vac (45 Hz to 500 Hz with 800 Hz filter):
Frequency (displayed with Vac and Aac)2:
AC voltage ripple (20KHz Max):
Adc/Aac (with accessory Fluke i410):
Temperature: 0°C to 60°C/ 2°C
Meter mode: 999 records for each measurement position with time stamp
Sequence mode: Up to 100 profiles and 100 profile templates (Each profile stores up to 450 batteries) with time stamp
Size (HxWxD): 22 cm x 10.3 cm x 5.8 cm
Weight: 850 g
Interface: USB mini

Detail

Manual

Functions

Range

Resolution

Accuracy

BT508

BT510

BT520

BT5213

Battery Resistance / Strap Resistance1

3 mΩ

0.001 mΩ

1% + 8

30 mΩ

0.01 mΩ

0.8% + 6

300 mΩ

0.1 mΩ

0.8% + 6

3000 mΩ

1 mΩ

0.8% + 6

Vdc

6 V

0.001 v

0.09% + 5

60 V

0.01 v

0.09% + 5

600 V

0.1 v

0.09% + 5

1000 v

1V

0.09% + 5







Vac (45 Hz to 500 Hz with 800 Hz filter)

600 v

0.1 v

2% + 10



Frequency (displayed with Vac and Aac)2

500 Hz

0.1 Hz
