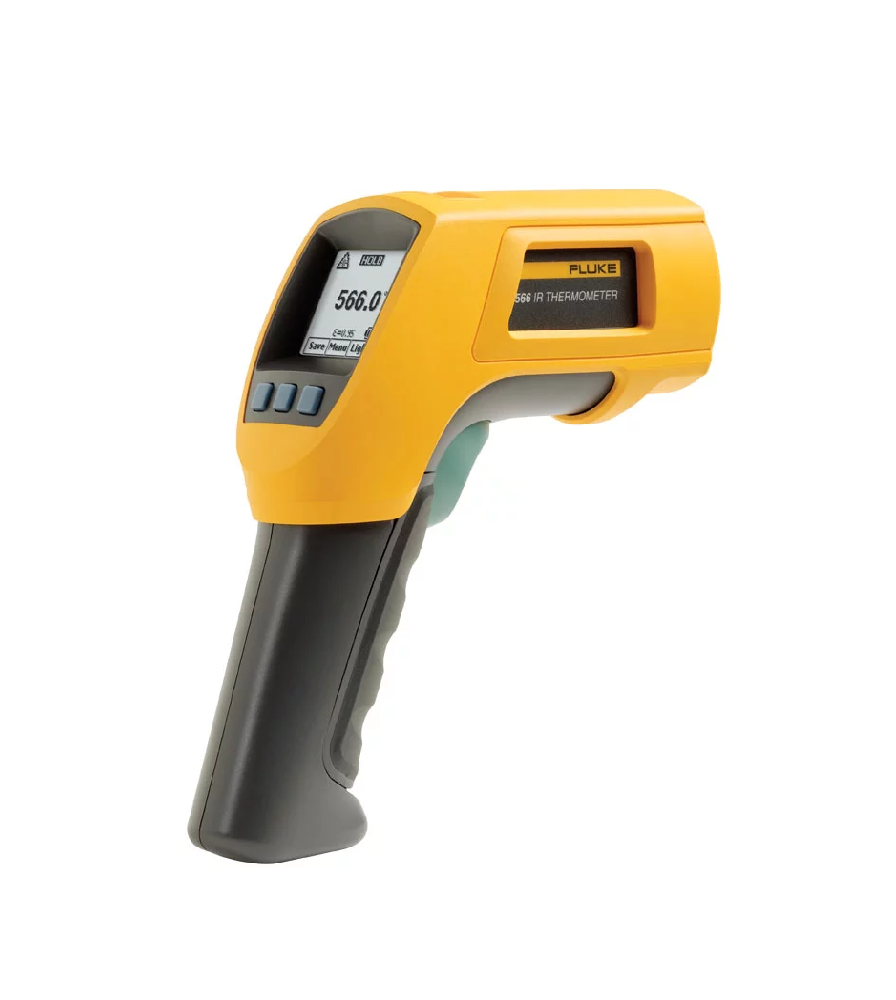

FLUKE 566 Súng đo nhiệt độ bằng hồng ngoại Fluke 566 (650℃)

Infrared range:-40 °C to 650 °C (-40 °F to 1202 °F)

Infrared accuracy: ± 1 % or ± 1.0 °C (± 2.0 °F)

Display resolution: 0.1 °C / 0.1 °F

Infrared spectral response:8 µm to 14 µm

Infrared response time:< 500 msec

Thermocouple Type-K:-270 °C to 1372 °C (-454 °F to 2501 °F)

D:S : 30:1

Emissivity: 0.10 to 1.00

Data storage with Date/Time stamp:20 points

Hi/Low alarms: Audible and two-color visual

Min/Max/Avg/Dif:Yes

Display: Dot matrix 98 x 96 pixels with function menus

Backlight: yes

Power:2 AA/LR6 Batteries

Include: Thermocouple K bead probe 260 oC, Durable hard case, 2 AA batteries, Getting Started guide in 6 languages, User’s Manual on CD

Detail
Product specifications
Infrared temperature range
566:  -40 °C to 650 °C (-40 °F to 1202 °F)
568:  -40 °C to 800 °C (-40 °F to 1472 °F)
Infrared accuracy
   < 0 °C (32 °F): ± (1.0 °C (± 2.0 °F) + 0.1°/1 °C or °F);
> 0 °C (32 °F): ± 1 % or ± 1.0 °C (± 2.0 °F), whichever is greater
Display resolution
   0.1 °C / 0.1 °F
Infrared spectral response
   8 µm to 14 µm
Infrared response time
   < 500 msec
Thermocouple Type-K input temperature range
   -270 °C to 1372 °C (-454 °F to 2501 °F)
Thermocouple Type-K input accuracy
-270°C to -40°C:  ± (1 °C + 0.2 °/1 °C) (-454 °F to -40 °F: ± (2 °F + 0.2 °/1 °F))
-40°C to 1372°C:  ± 1 % or 1 °C (-40 °F to 2501 °F: ± 1 % or 2 °F), whichever is greater
D:S (distance to measurement spot size)
566:  30:1
568:  50:1
Laser sighting
   Single-point laser < 1 mw output Class 2 (II) operation, 630 nm to 670 nm
Minimum spot size
   19 mm (0.75 in)
Emissivity adjustment
   By built-in table of common materials or digitally adjustable from 0.10 to 1.00 by 0.01
Data storage with Date/Time stamp
566:  20 points
568:  99 points
PC Interface and cable
566:  None
568:  USB 2.0 with FlukeView® Forms software
Hi/Low alarms
   Audible and two-color visual
Min/Max/Avg/Dif
   Yes
Display
   Dot matrix 98 x 96 pixels with function menus
Backlight
   Two levels, normal and extra bright for darker environments
Trigger lock
   Yes
Switchable Celsius and Fahrenheit
   Yes
Power
566:  2 AA/LR6 Batteries
568:  2 AA/LR6 Batteries and USB when used with a PC
Battery life
If used continuously:  laser and backlight on,12 hours; laser and backlight off, 100 hours
Operating temperature
   0 °C to 50 °C (32 °F to 122 °F)
Storage temperature
   -20 °C to 60 °C (-40 °F to 140 °F)
Bead thermocouple Type-K range
   -40 °C to 260 °C (-40 °F to 500 °F)
Bead thermocouple Type-K accuracy
   ± 1.1 °C (2.0 °F) from 0 °C to 260 °C (32 °F to 500 °F), typically within 1.1 °C (2.0 °F) from -40 °C to 0 °C (-40 °F to 32 °F)



Datasheet »
