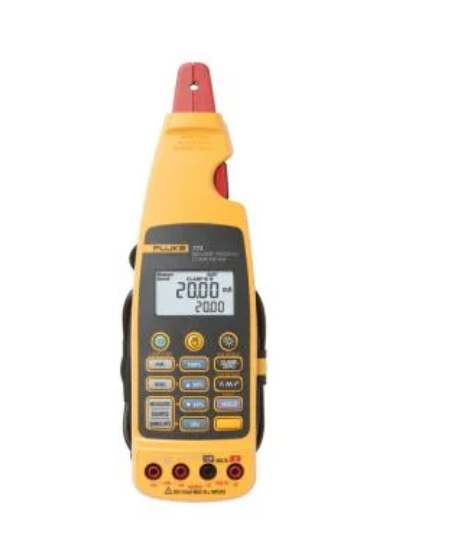

FLUKE 773 过程钳形表 (100mA)

- mA (clamp):

+ 0 to 20.99 mA /0.2% + 2 counts

+ 21.0mA to 100.0 mA /1% + 5 counts

mA (series with test jacks)

+ 0 to 24.00 mA /0.2% + 2 counts

- mA source (Maximum mA Drive:24 mA into 1,000 ohms)

+ 0 to 24.00 mA /0.2% + 2 counts

- mA simulate (Maximum voltage 50 V dc)

+ 0 to 24.00 mA /0.2% + 2 counts

- Voltage source (2 mA maximum drive current)

+ 0 to 10.00 V dc /0.2% + 2counts

- Voltatge Mesaure

+ 0 to 30.00 V dc /0.2% + 2counts

Diameter conductor: 0.177” or 4.5 mm max

IP Rating:IP 40

Size:59 x 38 x 212 mm, (2.32 x 1.5 x 8.35 in.)

Weight             260G, (9.1 oz.)

Included: Soft Carrying Case, Users Manual

The 773 mA Clamp Meter features:

• Best in class 0.2 % accuracy
• 0.01 mA resolution and sensitivity
• Measure 4 to 20 mA signals without ”breaking the loop”
• Measure mA signals for PLC and control system analog I/O
• Dual backlit display with both mA measurement and percent of 4 to 20 mA span
• Measurement Spotlight illuminates hard to see wires in dark enclosures
• Detachable clamp with extension cable for measurements in tight locations
• Measure 10 to 50 mA signals in older control systems using the 99.9 mA range
• Automatically change the 4 to 20 mA output for remote testing
• Power saving features, auto-off, backlight timeout extend battery life
• Hold function captures and displays changing measurements
• Measure 4 to 20 mA signals with in-circuit measurement
• Simultaneous mA in-circuit measurement with 24V loop power for powering and testing transmitters
• Source 4 to 20 mA signals for testing control system I/O or I/Ps
• mA output linear ramp or 25% step output
• Automatically change the 4 to 20 mA output for remote testing
• DC voltage measurement to verify 24V power supplies or voltage I/O signals
• Source DC voltage to test input devices that accept a 1-5V or 0 to 10V signals
• Scaled mA output provides a continuous mA signal that corresponds to the 4 to 20 mA signal measured by the mA clamp
• Enables milliamp signal logging to a separate logging device without breaking the loop
• Output mA signal enables a logging DMM or other device to record the 4- to 20 mA signal without breaking the loop
• mA in/out: simultaneously measure the mA signal with the clamp and source a mA signal
• Apply a mA input signal to a device and measure its’ 4-20 mA output on devices such as valves or mA isolators
• Voltage output linear ramp or 25% step output
• Automatically change the voltage output for remote testing



What’s the difference between the 77X models?

.	Fluke-771	Fluke-772	Fluke-773
.	Non-contact mA loop measurement	Integrated mA loop troubleshooting	Advanced process troubleshooting
mA measure, jaw
mA measure, in circuit	.
Loop power	.
mA source	.
DCV measure	.	.
DCV source	.	.
mA scaled output	.	.
mA in / out	.	.

Environmental Specifications
Diameter of measurable conductor	0.177” or 4.5 mm max
Operating temperature	-10 to 50 ºC
Storage Temperature	-25 to 60ºC
Operating Humidity	< 90% @ <30 c="" 75="" 30="" to="" 55="" c="" td="">
Operating Altitude	0 to 2000 m
IP Rating	IP 40
Size	44 x 70 x 246 mm (2 7/8 x 5 ¾ x 11 5/8 in)
Weight	410 g, (14.4 oz)
Vibration	Random 2 g, 5 to 500 Hz
Shock	1 meter drop test (except the jaw)
EMI/RFI	Meets EN61326-1 Note: For current measurement w/ JAW, add 1mA to specification for EMC field strengths of 1V/m up to 3V/m.
Temperature Coefficient	0.01% ºC (<18ºC or > 28ºC)
Power, battery life	(4) AA 1.5 V Alkaline, IEC LR6, 12 hours in mA source into 500 ohms
Warranty	Three years for electronics one year for cable and clamp assembly



Functional Specifications
mA measurement (Measured by clamp) 771/772/773	Resolution and Range:          0 to 20.99 mA Accuracy:                             0.2%+2 counts Resolution and Range:          21.0 mA to 100.0 mA Accuracy:                             1% + 5 counts
mA measurement (Measured in series with test jacks) 772/773	Resolution and Range:          0 to 24.00 mA Accuracy:                             0.2% + 2counts
mA source (Maximum mA Drive: 24 mA into 1,000 ohms)	Resolution and Range:          0 to 24.00 mA Accuracy:                             0.2% + 2counts
mA simulate (Maximum voltage 50 V dc)	Resolution and Range:          0 to 24.00 mA Accuracy:                             0.2% + 2counts
Voltage source (2 mA maximum drive current)	Resolution and Range:          0 to 10.00 V dc Accuracy:                             0.2% + 2counts
Voltatge Mesaure	Resolution and Range:          0 to 30.00 V dc Accuracy:                             0.2% + 2counts
