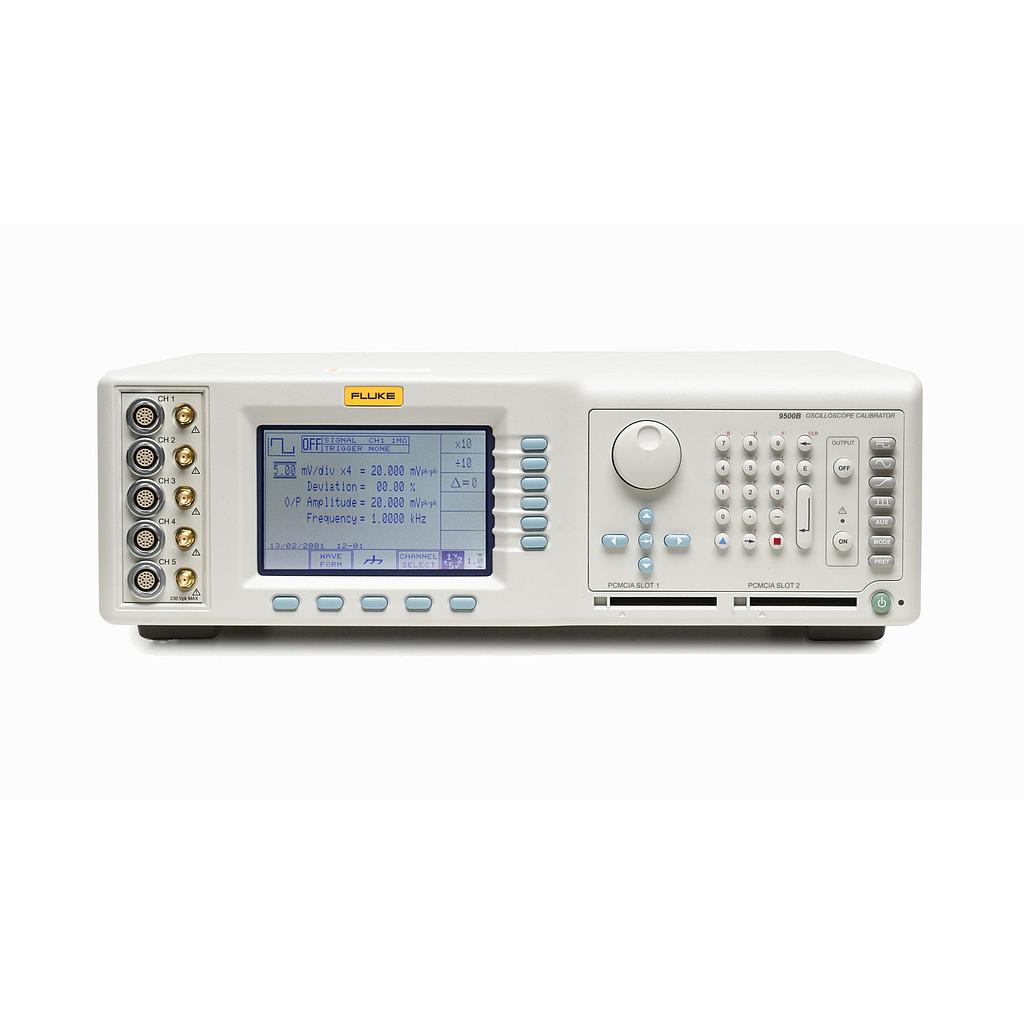

Fluke 9500B / 600 示波器校准器(600Mhz)

Frequency: 0.1 Hz to 600 MHz
output on 5 channels

Detail

Datasheet

Option
9510: Active Head with 1.1 GHz and 500 ps pulse capability
9500-60: Soft Carrying Case
9500-65: Hard Transit Case (Requires Option 60)



DC Voltage

Amplitude



 ± 1 mV to ± 200V into 1M Ω



 ± 1 mV to ± 5V into 50 Ω

Accuracy



 ± (0.025% + 25 µV)

Ranging



 1, 2, 5 or 1, 2, 2.5, 4, 5 or continuous

Deviation



 ± 11.2%



Squarewave

Amplitude

Range:

 40 µV to 200V pk-pk into 1MΩ



 40 µV to 5V pk-pk into 50Ω

Polarity:

 Positive, negative or symmetrical about ground

Accuracy (10 Hz to 10 kHz):

 <1 mv="" 1="" 10="" v="" p="">



 1 mV-21 mV ± (0.10% + 10 µV)

Ranging:

 1, 2, 5 or 1, 2, 2.5, 4, 5 or continuous

Deviation:

 ± 11.2%

Rise/Fall Time



 <100v 150="" ns="" p="">



 >=100V <200 ns="" p="">

Aberrations



 <2% peak for first 500 ns

Frequency

Range:

 10 Hz to 100 kHz

Accuracy:

 ± 0.25 ppm

Ranging:

 1, 2, 5 or 1, 2, 2.5, 4, 5 or continuous



2 A, 20 A, 120 A (100 A dc)

Low-Edge Pulse

Amplitude

Range:

 5 mV to 3V pk-pk into 50Ω

Accuracy:

 +50 ps to -150 ps

Ranging:

 1, 2, 5 or 1, 2, 2.5, 4, 5 or continuous

Rise/Fall Time



 500 ps return to ground

Mk/Sp Ratio



 1:9

Aberrations (into VSWR 1.2:1)



 <± pk in 8Ghz



 <± 1.5% pk in 3Ghz



 (First 10ns)

Frequency

Range:

 10 Hz to 2 Mhz

Accuracy:

 ± 0.25 ppm

Ranging:

 1, 2, 5 or 1, 2, 2.5, 4, 5 or continuous



200 mA, 200 mA, 120 mA (100 mA dc)

High-Edge Pulse

Amplitude

Range:

 1mV to 200V pk-pk into 1 MΩ



 1mV to 5V pk-pk into 50Ω

Accuracy:

 ± 3%

Ranging:

 1, 2, 5 or 1, 2, 2.5, 4, 5 or continuous

Rise/Fall Time



 <100v 150="" ns="" p="">



 >=100V <200 ns="" p="">

Mk/Sp Ratio



 1:1

Aberrations



 <2% peak for first 500ns

Frequency

Range:

 10 Hz to 100 kHz

Accuracy:

 ± 0.25 ppm

Ranging:

 1, 2, 5 or 1, 2, 2.5, 4, 5 or continuous



10, 100, 1000

Fast-Edge (only available on 9530 Active Heads)

Amplitude

Range:

 5 mV to 3V pk-pk into 50Ω

Accuracy:

 ± 3%

Ranging:

 1, 2, 5 or 1, 2, 2.5, 4, 5 or continuous

Rise/Fall Time



 150 ps return to ground

Mk/Sp Ratio



 1:9

Aberrations



 <3% peak in 8 Ghz



 <2% peak in 3 Ghz



 (First Ins)

Frequency

Range:

 10 Hz to 2 Mhz

Accuracy:

 ± 0.25 ppm

Ranging:

 1, 2, 5 or 1, 2, 2.5, 4, 5 or continuous



2 V, 2 V, 1.2 V (1.0 V dc)

70ps Fast-Edge (only available on 9560 Active Heads)

Amplitude

Range:

 25 mV to 2V pk-pk

Accuracy:

 ± 3%

Ranging:

 1, 2, 5 or 1, 2, 2.5, 4, 5 or continuous

Rise/Fall Time



 70 ps return to ground

Mk/Sp Ratio



 1:9

Aberrations



 <± 4% peak in 20 Ghz



 <3% peak in 8 Ghz



 <1% peak in 3 Ghz



 (First 700 ps)

Frequency

Range:

 10 Hz to 1 Mhz

Accuracy:

 ± 0.25 ppm

Ranging:

 1, 2, 5 or 1, 2, 2.5, 4, 5 or continuous



1,10,100 Siemens
