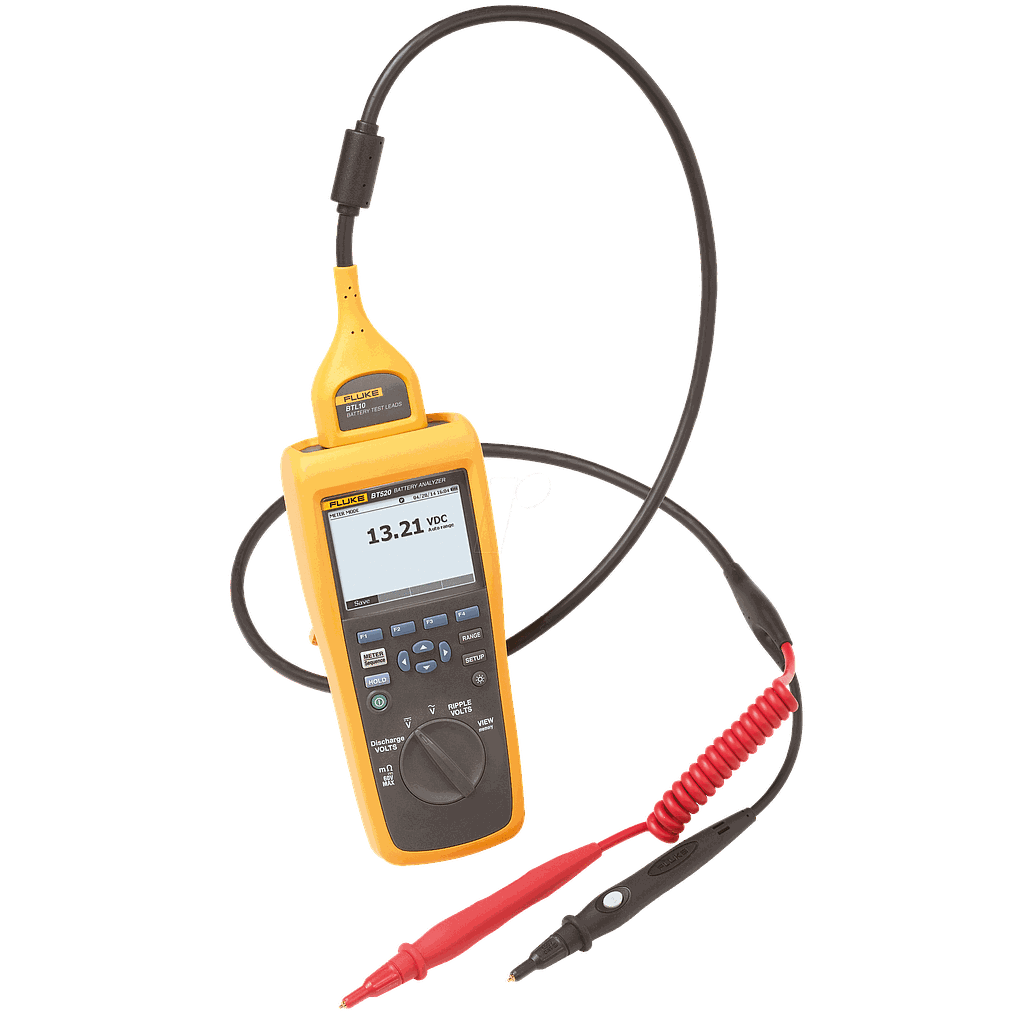

FLUKE FLUKE-BT521 先进电池分析仪

Range, Resolution, Accuracy:

- Battery Resistance / Strap Resistance:

3 mΩ, 0.001 mΩ, 1% + 8

30 mΩ, 0.01 mΩ, 0.8% + 6

300 mΩ, 0.1 mΩ, 0.8% + 6

3000 mΩ, 1 mΩ, 0.8% + 6

- VDC:

6 V, 0.001 V, 0.09% + 5

60 V, 0.01 V, 0.09% + 5

600 V, 0.1 V, 0.09% + 5

- VAC (45 Hz to 500 Hz with 800 Hz filter): 600 V, 0.1 V, 2% + 10

Frequency (displayed with VAC and AAC): 500 Hz, 0.1 Hz, 0.5% + 8

AC voltage ripple (20 KHz  Max):

600 mV 0.1 mV 3% + 20

6000 mV 1 mV 3% + 10

Size (H x W x D): 22 x 10.3 x 5.8 cm (9 x 4 x 2 in)

Weight: 850 g (1.9 lb)

Screen dimensions: 7.7 x 5.6 cm (3 x 2.2 in)

Interface: USB mini

Includes:

Battery analyzer

4-wire test pin (set)

BTL10 Basic Test Lead (set)

TL175 TwistGuard™ Test Leads with adapter

BTL21 Intelligent Test Probe Set, with extender and temperature sensor

i410 AC/DC Current Clamp

BP500 lithium-ion battery

BC500 AC charger

mini-USB cable

Shoulder strap

Belt strap

Magnetic hanging strap

FlukeView® Battery Management Software

Soft carrying case

Spare fuses (2)

Battery tags

Zero Ohm Calibration Resistor
