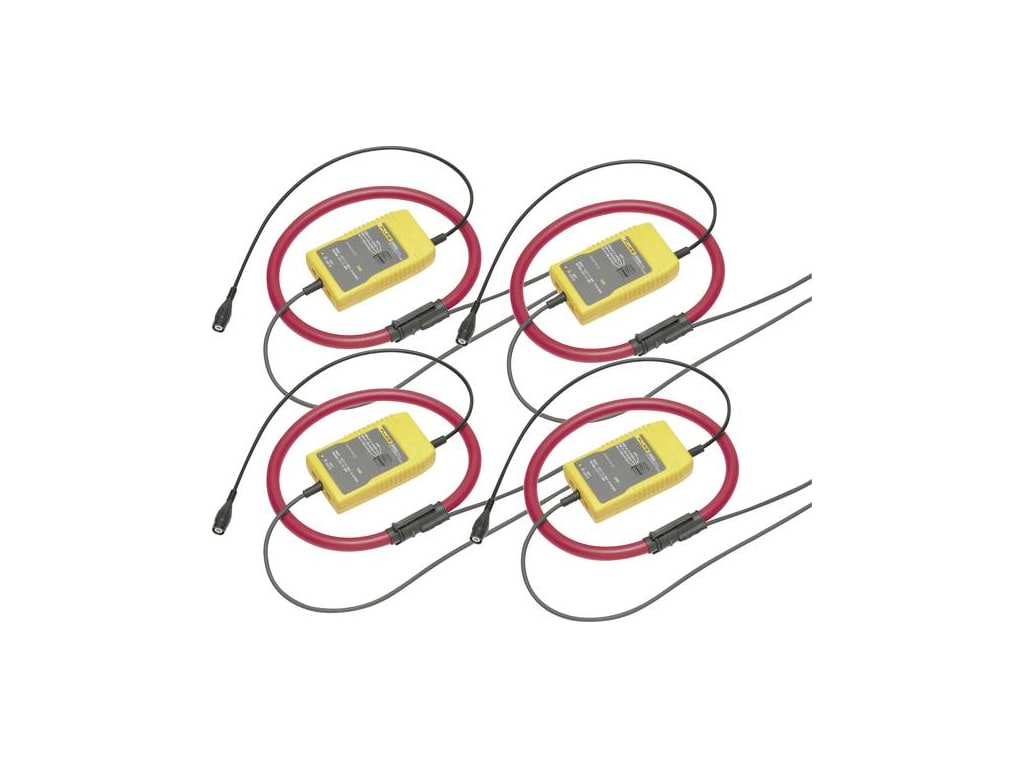

FLUKE I3000 FLEX-4PK Flex AC Current Clamp (AC 3000 A, 50 kHz, pack 4, For oscilloscopes)
制造商: FLUKE Model: I3000 FLEX-4PK P/N: 2696367 来源: China/Taiwan - 报价要求
- 报价要求
- 联系
Current ranges 30 A,300 A, 3000 A AC rms
Output sensitivity (AC-coupled) 100 mV, 10 mV, 1 mV per A
Load impedance: 100 kΩ minimum
Accuracy: at +25°C ±1% of range (45 Hz to 65 Hz)
Linearity: 0% to 100% of range ±0.2% of reading
Noise: 8 mV AC rms (30 A), 2 mV AC rms (300 A, 3000 A)
Frequency range: 10 Hz to 50 kHz (-3 dB)
Output connection: 0.5 m cable terminated with safety BNC connector. Supplied with 4mm safety plug adapter
