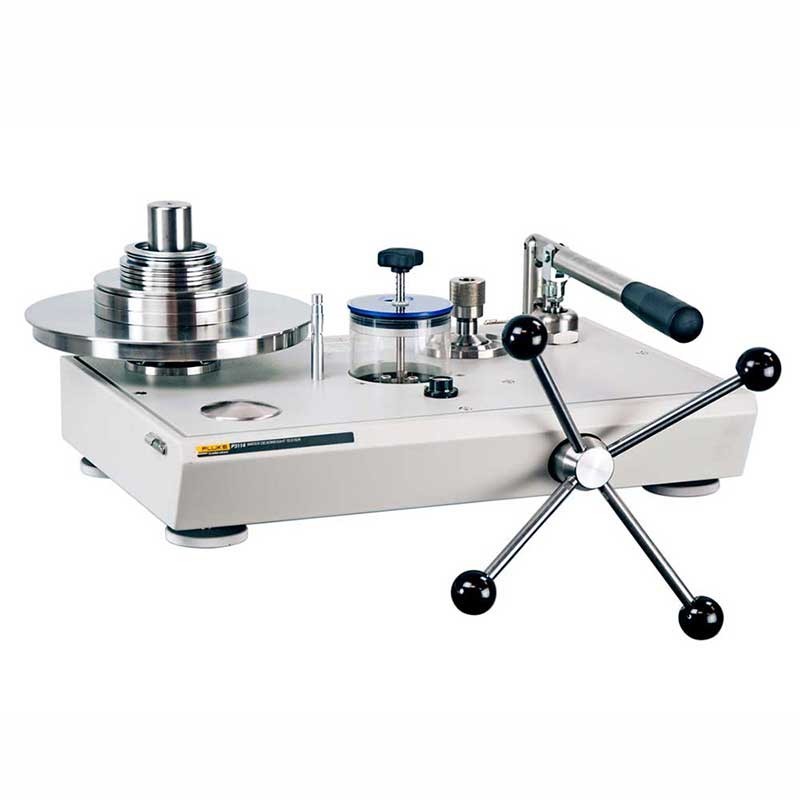

Fluke P3113-PSI 油介质活塞式压力计(100~5,000psi)

Range: 100 to 5,000 psi

Standard Weight Material: Series 3 non-magnetic austenitic stainless steel

Weight Density: 7.8g/cm3

Optional Fractional Weights: Solution heat-treated aluminum

Piston Material :Tungsten carbide with nickel binder

Density: 15g/cm3

Cylinder Material: Hardened martensitic steel; tungsten carbide (water above 500psi, 35bar)

Thermal Coefficients of Expansion: Oil piston/cylinder: 16.5ppm/°C; water: (above 500psi, 35bar) 11ppm/°C

Test Port Adapters: 1/8, 1/4, 3/8 and 1/2 NPT or BSP

Reservoir Volume: 150cc

Screw Press Displacement: 5.5cc

Pump Displacement: 4.7cc per stroke

O-Ring Seal Materials: Buna N as standard, Viton and EPDM available
