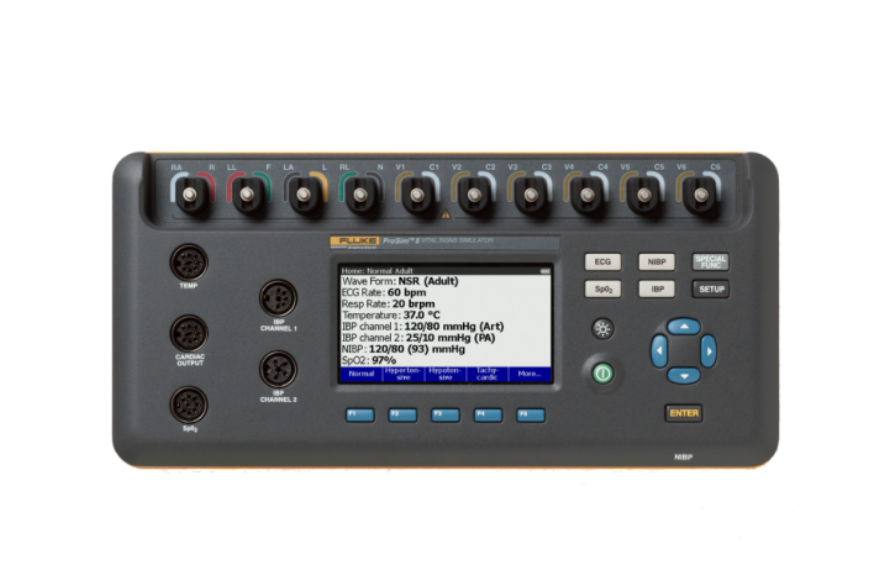

FLUKE Prosim 8 Vital Signs and ECG Patient Simulator

Temperature

Operating: 10 °C to 40 °C (50 °F to 104 °F)

 Storage: -20 °C to +60 °C (-4 °F to 140 °F)

Humidity: 10 % to 90 % non-condensing

Altitude: 3,000 meters (9,843 ft)

Dimensions (L x W x H): 14.5 cm x 30.2 cm x 8.6 cm (5.7 in x 11.9 in x 3.4 in)

Display: LCD color display

Communication:

- USB device upstream port: Mini-B connector for control by a computer

- USB host controller port: Type A, 5 V output, 0.5 A max load. Connector for keyboard, barcode reader, and printer

- Wireless: IEEE 82.15.4 for control by a computer

Power: Lithium-ion rechargeable battery

Battery charger: 100 V to 240 V input, 15 V/2.0 A output. For best performance, the battery charger should be connected to a properly-grounded ac receptacle

Battery life: 9 hours (minimum), 100 NIBP cycles typical

Weight: 1.87 kg (4.2 lb)

Safety standards: IEC/EN 61010-1 3rd Edition; Pollution degree 2 CAT None

Certifications: CE, CSA, C-TICK N10140 , RoHS

Electromagnetic compatibility (EMC): IEC 61326-1:2012
