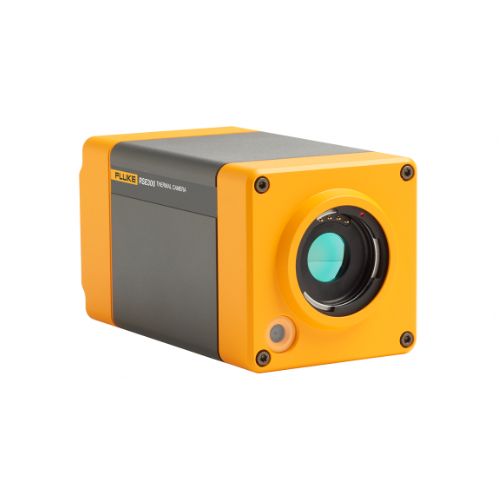

FLUKE RSE600/C 挂式热像仪 (9Hz)

IFOV with standard lens (spatial resolution): 0.93 mRad

Detector resolution: 640 x 480 (307,200 pixels)

Field of view: 34 °H x 25.5 °V

Minimum focus distance: 15 cm (approx. 6 in)

Temperature measurement

Temperature measurement range (not calibrated below -10 °C): -10 °C to +1200 °C (14 °F to +2192 °F)

Accuracy: ± 2 °C or ± 2 %, whichever is greater

Reflected background temperature compensation: Yes

Transmission correction: Yes

Live line marker: Yes

Operating temperature: -10 °C to +50 °C (14 °F to 122 °F)

Storage temperature: -20 °C to +50 °C (-4 °F to 122 °F) without batteries

Relative humidity: 10 % to 95 % non-condensing

Size (H x W x L): 8.3 x 8.3 x 16.5 cm (3.3 x 3.3 x 6.5 in)

Weight (battery not included): 1 kg (2.2 lb)

Details

Datasheet


Manual
