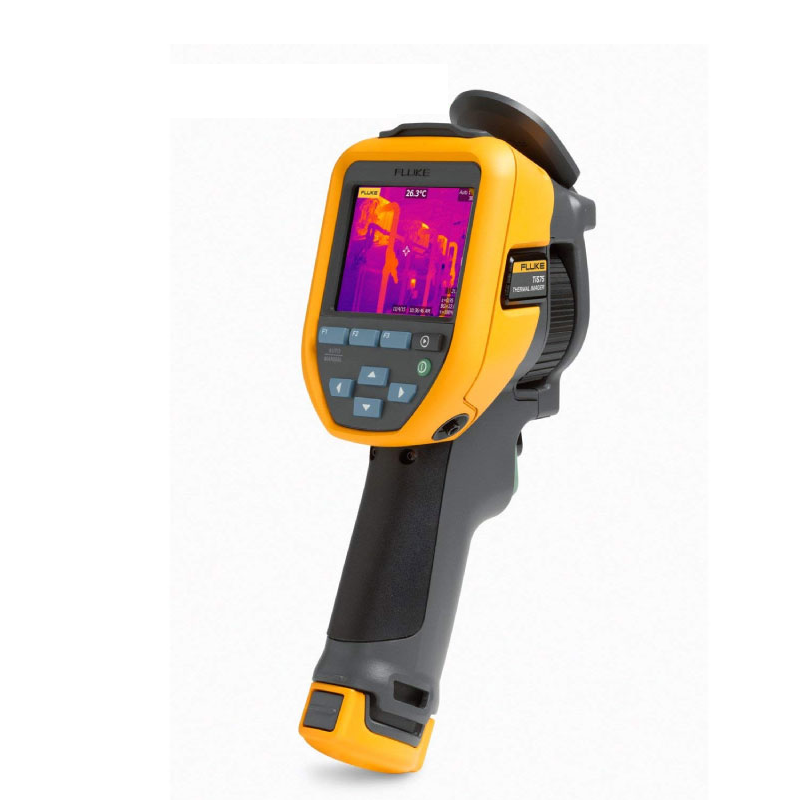

Fluke TiS75 高精度手持热成像红外热像仪(320x240像素,-20°C至+ 550°C,2,0 mRad)

Key Features

IFOV (spatial resolution): 2.0 mRad

Detector resolution: 320x240

Field of view: 35.7 ° x 26.8 °

Distance to spot: 504:1

Wireless connectivity: Yes

Fluke Connect® app compatible: Yes (where available)

IR-Fusion® Technology

AutoBlend™ mode: 5 presets (0%, 25%, 50%, 75%, 100%)

Picture-In-Picture (PIP): 5 presets (0%, 25%, 50%, 75%, 100%)

Focus system: Manual focus, Minimum focus distance, 0.15 m (6 in)

Ruggedized display: 3.5 inch (landscape) 320x240 LCD

Rugged, ergonomic design for one-handed use: Yes

Thermal sensitivity (NETD): ≤ 0.08 °C at 30 °C target temp (80 mK)

Temperature measurement range (not calibrated below -10 °C): -20 °C to +550 °C (-4 °F to 1022 °F)

Level and span: Smooth auto and manual scaling

Fast auto toggle between manual and auto modes: Yes

Fast auto-rescale in manual mode: Yes

Minimum span (manual mode): 2.5 °C

Minimum span (auto mode): 5 °C

Built-in digital camera (visible light): 5 MP

Frame rate: 9 Hz or 30 Hz

Laser pointer: Yes

Data storage and Image Capture

Extensive SD memory system: Internal 4 GB memory and 4 GB removable micro SD card

Image capture, review, save mechanism: One-handed image capture, review, and save capability

Image file formats: Non-radiometric (.bmp) or (.jpeg) or fully-radiometric (.is2);

No analysis software required for non-radiometric (.bmp, .jpg) files

Instant upload: Instantly upload captured images to Fluke Connect server with the use of a WiFi connection

Memory review: Thumbnail review

Software: SmartView® software - full analysis and reporting software and Fluke Connect® (where available)

Export file formats with SmartView® software BMP, DIB, GIF, JPE, JFIF, JPEG, JPG, PNG, TIF, and TIFF

Voice annotation: Yes, Bluetooth Headset (sold separately)

IR-PhotoNotes™: Yes (3 images)

Standard video recording: Yes

Radiometric video recording: Yes

Video file formats: Non-radiometric (MPEG - encoded .AVI) and fully radiometric (.IS3)

Streaming video (remote display): Yes


Batteries (field-replaceable, rechargeable): Two lithium ion smart battery packs with five-segment LED display to show charge level

Battery life: Four+ hours

Battery charge time: 2.5 hours to full charge

Battery charging system : Two-bay battery charger or in-imager charging

AC operation: AC operation with included power supply (100 V AC to 240 V AC, 50/60 Hz)

Temperature Measurement

Accuracy: ±2 °C or 2% (at 25 °C nominal, whichever is greater)

On-screen emissivity correction: Yes (both value and table)

On-screen reflected background temperature compensation : Yes

On-screen transmission correction: Yes

Color Palettes

Standard palettes: 8: Ironbow, Blue-Red, High-Contrast, Amber, Amber Inverted, Hot Metal, Grayscale, Grayscale Inverted

Ultra Contrast™ palettes: 8: Ironbow Ultra, Blue-Red Ultra, High-Contrast Ultra, Amber Ultra, Amber Inverted Ultra, Hot Metal Ultra, Grayscale Ultra, Grayscale Inverted Ultra

General Specifications

Color alarms (temperature alarms): High temperature, low temperature, Isotherms

Infrared spectral band: 7.5 μm to 14 μm

Operating temperature: -10 °C to +50 °C (14 °F to 122 °F)

Storage temperature: -20 °C to +50 °C (-4 °F to 122 °F)

Relative humidity: 10% to 95%, non-condensing

Center-point temperature measurement: Yes

Spot temperature: Yes

User-definable spot markers: 3

Center box Expandable-contractible measurement box with MIN-MAX-AVG temp

Safety standards: EN 61010-1: CAT none, pollution degree 2, EN 60825-1: Class 2, EN 60529, EN 62133 (lithium battery)

Electromagnetic compatibility: EN 61326-1:2006, EN 55011: Class A, EN 61000-4-2, EN 61000-4-3

C Tick: IEC/EN 61326-1

US FCC: EN61326-1; FCC Part 5, EN 55011: Class A, EN 61000-4-2, EN 61000-4-3

Vibration and shock: 2G, IEC 68-2-6 and 25G, IEC 68-2-29

Drop: Engineered to withstand 2 m (6.5 ft) drop

Size (H x W x L): 26.7 x 10.1 x 14.5 cm (10.5 x 4.0 x 5.7 in)

Weight (battery included): Fixed focus .72 kg (1.6 lb), Manual focus .77 kg (1.7 lb)

Enclosure rating: IP54 (protected against dust, limited ingress; protection against water spray from all directions)
