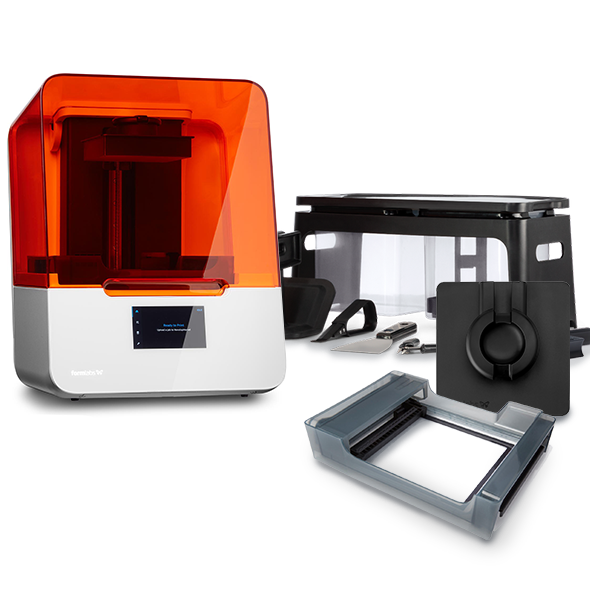

FORMLABS PKG-F3B-WS- BASIC Form 3B+3D打印机基本包
制造商: FORMLABS Model: PKG-F3B-WS- BASIC 保障: 12 Month - 联系
Technology
Laser-Powered Stereolithography (SLA)
Printer Engine
Low Force Stereolithography™ (LFS)
Key Components of the Print Engine
Laser
Light Processing Unit (LPU)
Flexible Film Resin Tank
Intelligent Control Systems
Automatic Resin Handling
Light Source
1 Light Processing Unit
EN 60825-1:2014 certified
Class 1 Laser Product
405 nm optical wavelength
250 mW laser
85 µm laser spot size
Maximum Print Speed¹
31 mm/hour
1.2 in/hour
Typical Print Speed²
Average: 11 mm/hour across all materials
Range: 4-17 mm/hour depending on the material
Surface Accuracy (Restorative Models)⁴
On average with Model Resin V3:
87% of surfaces within 100 μm of CAD model
66% of surfaces within 50 μm of CAD model
On average with Model Resin V2:
94% of surfaces within 100 μm of CAD model
73% of surfaces within 50 μm of CAD model
Materials
45 industry-leading Formlabs materials, including 18 biocompatible, or third-party materials using Open Platform.
Biocompatible Materials
Yes
Build Volume (W x D x H)⁵
14.5 × 14.5 × 19.3 cm
5.7 × 5.7 × 7.6 in
4.05 liters
Build Area
210 cm²
32.6 in²
Maximum Part Length⁶
22.4 cm
8.8 in
XY Resolution⁷
25 µm
0.001 in
Layer Thickness⁸
25–300 µm
0.001–0.012 in
Printer Dimensions (W x D x H)
40.5 × 37.5 × 53 cm
15.9 × 14.8 × 20.9 in
Printer Weight
17.5 kg
38.5 lbs
Operating Environment
18–28 °C
64–82 °F
Power Requirements
100–240 VAC
2.5 A
50/60 Hz
220 W
Connectivity
Wi-Fi (2.4 and 5 GHz; IEEE 802.11 b/g/n, WPA/WPA2)
Ethernet (1000 Mbit)
USB-B 2.0
Printer Control⁹
5.5" interactive touchscreen
1280 × 720 resolution
Languages: English, Japanese, Traditional Chinese, Simplified Chinese
Alerts
Touchscreen alerts
SMS/email via Dashboard
Two LED status indicators
Speaker for audio alerts
Sensors and Control Systems
5 original sensors that control resin temperature, resin level, and print forces:
- Convection resin heating with thermistor temperature sensing
- Resin Level Sense: controls resin in the tank
- Z-Axis Force Sensor: controls and minimizes print forces
- Resin Cartridge Load Cell: measures approximate resin level in the cartridge
- Printer Leveling Sensor
Software
PreForm, Dashboard, Fleet Control
PreForm System Requirements
Windows 7 (64-bit) and up
Mac OS X 10.12 and up
OpenGL 2.1
C++ runtime library from Microsoft (Windows only)
4 GB RAM (8 GB recommended)
PreForm File Types
STL, OBJ, and 3MF file input
FORM file output
Resin Tank Estimated Lifetime¹⁰
250-800 hours of printing and/or 10-35 weeks exposed to resin, depending on material
For example: approximately 70 prints using Grey Resin V4 and average print time (11 hours) or approximately 20 prints using Tough 2000 Resin and average print time (11 hours)
