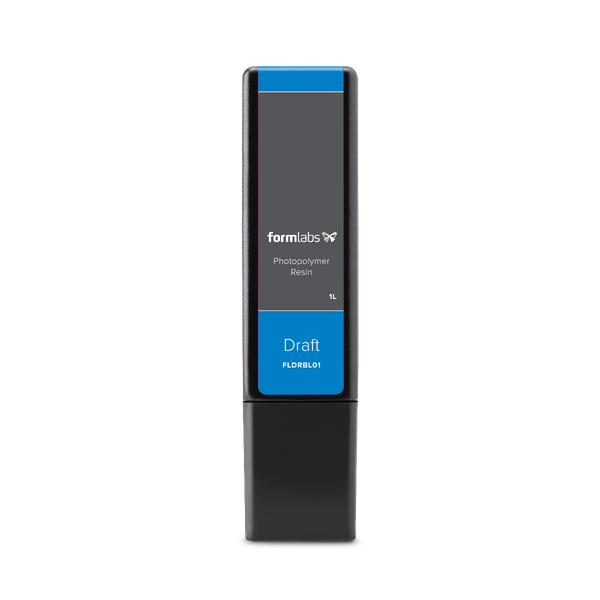

Our fastest material, Draft Resin, prints 3-4 times faster than other Standard Resins, making it suitable for printing large, bulky parts quickly.
With a 300 micron layer height, it has acceptable accuracy for prototyping needs while enabling faster design iterations.
Draft Resin is perfect for truly rapid prototyping and printing large parts or multiple part assemblies quickly.
Supports print resolutions: 300 microns (Form 2, Form 3, and Form 3B).
No post-curing required.
Ultimate Tensile Strength: 28 MPa / 4061 psi
Flexural Modulus: 0.9 GPa / 131 ksi
Tensile Modulus: 1.3 GPa / 189 ksi
Elongation: 10 %
Notched IZOD: 35 J/m / 0.7 ft-lbf/in
Heat Deflection Temp. @ 1.8 MPa: 44.3 °C / 111.7 °F
Heat Deflection Temp. @ 0.45 MPa: 50.7 °C / 123.3 °F
Thermal Expansion 60 °C): 98.8 μm/m/ °C / 54.9 μin/in/°F
