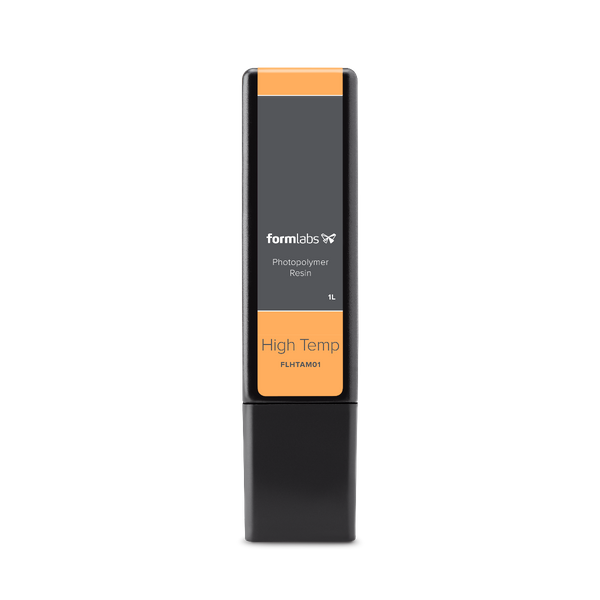

FORMLABS RS-F2-HTAM-02 High Temp Resin Cartridge (Form 2 - 3)

  • 制造商: FORMLABS
    Model: RS-F2-HTAM-02
    来源: Korea
    • 报价要求 报价要求
  • 联系
  • 价格合理详情请致电

    热线:   (+84) 966520220

    电话:  +84 (24) 62923267




Whether you’re optimizing your manufacturing process, rapidly iterating through designs, or assessing form, fit, and function, Formlabs Engineering Resins are formulated to withstand extensive testing and perform under stress.


High Temp Resin has a heat deflection temperature (HDT) of 238 °C @ 0.45 MPa—the highest among Formlabs resins. Use it to print detailed, precise prototypes with high thermal stability.


Separate Resin Tank required for High Temp Resin V1 and V2.

Supports print resolutions: 100, 50, and 25 microns.

Post-curing required.

Ultimate Tensile Strength:  58.3 MPa

Flexural Modulus: 2.62 GPa

Tensile Modulus: 2.75 GPa

Elongation: 3.3 %

Notched IZOD: 18.2 J/m

Heat Deflection Temp. @ 1.8 MPa: 99.2 °C

Heat Deflection Temp. @ 0.45 MPa: 142 °C

Thermal Expansion (23 – 50 °C): 79.6 (μm/m/°C)

Details

Datasheet
