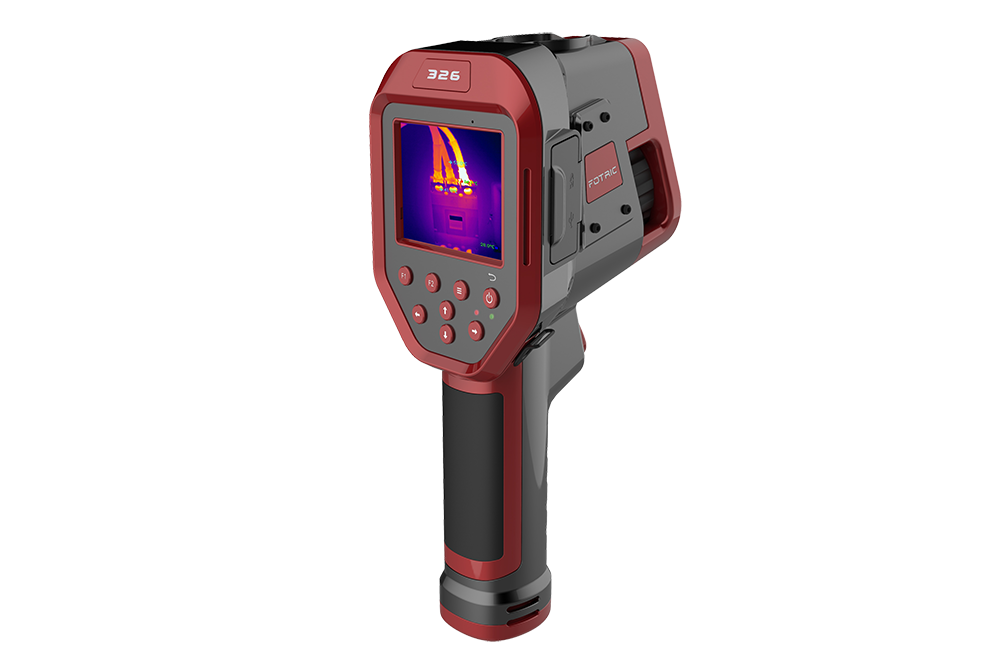

FOTRIC 326 手持红外热成像仪 (-20°C~650°C)
制造商: FOTRIC Model: 326 保障: 12 Month - 报价要求
- 联系
Thermal Imaging
IR Resolution: 384×288
Field of View (Fov): 28°×21°
Thermal sensitivity (NETD): <0.06°C@30°C
Spatial Resolution (IFOV): 1.27mrad
Digital Zoom: 1~8X
Detector Type: Focal Plane Array (FPA) uncooled microbolometer
Spectral Range: 8~14μm
Minimum Focus Distance: 0.15m
Focus: Manual
Measurement and Analysis
Temperature Range: -20°C~650°C (-4°F~1,202°F)
Accuracy: ±2°C or ±2% whichever is greater @ Environment Temperature 10°C ~35°C
Automatic Capture of High and Low Temperature: Support
ROI Measurement Modes:
• 5 moveable area boxes (min/max)
• 8 moveable spots
• 1 moveable line (min/max)
Correction Settings: Emissivity, reflected background temperature, relative humidity, ambient temperature, measuring distance, transmission
Emissivity Adjustment: 0.01~1.0, or pick up from the built-in material list
Image Display
Built-in Display Screen: 3.5 inch
Display Mode: Thermal image, visible light image, picture-in-picture fusion
Color palette: 5 palette option
Image Consistency Optimization: Automatic noise calibration FFC / Manual noise calibration FFC
Professional Features
Color Alarm (Isotherm): Above / Below threshold
Temperature Measurement Alarm: User-defined temperature threshold, audible and visual alarm
of above/below temperature threshold
Voice Annotation: 60s voice annotation. Save with image.
Text Annotation: Support text annotation. Save with image.
Handheld Thermal Camera with Smartphone
Take radiometric image on Smartphone: Support
Take fully radiometric Video on Smartphone: Support
Battery
Battery Type: Rechargeable Lithium-ion
Single Battery Use Time: 2.5 hours
Auto Shut-off: Support
Storage and Transfer
Image Save Mode: Single thermal image, Mixed image of thermal and visible light
SD Card: Standard 16G
Data Output: Micro-USB
Video Output: Support, PAL/NTSC composite video
Audio: Support, 3.5mm audio interface
Power Supply and Environment
Power Interface: DC 12V
Operation Temperature: -20°C~50°C (-4°F~122°F)
Storage Temperature: -40°C~70°C (-40°F~158°F)
Relative Humidity: <90% RH
Physical Parameters
Enclosure Rating: IP54
Weight: 1,006g
Size: 310mmx130mmx110mm
Standard Configuration: Thermal imaging camera with standard lens, lens cover, power adapter, battery (2x), SD card, Micro-USB OTG cable (left/right), Micro-USB to USB cable, wrist band, getting started manual (with warranty card and certificate), calibration certificate, rigid portable case
