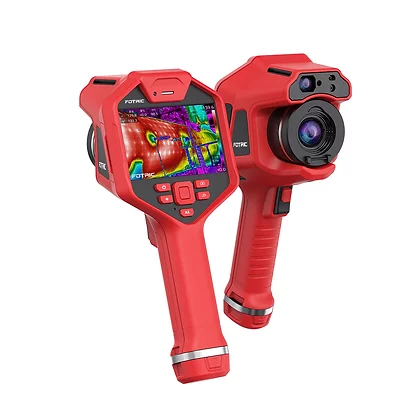

FOTRIC 346A-L25-L44-L12-L7 高级AI热成像仪 (1.14mrad; 384*288; -20℃~1550℃)

Infrared Resolution: 384*288

Field of View（FOV）: 25°×19°

Super Resolution (SR): 768*576

Thermal Sensitivity（NETD): ＜0.03℃ at 30℃

Temperature Measurement Range: -20℃ to 1550℃ (-4 ℉ to 2822 ℉ )

Accuracy: ± 2℃ or ± 2 %, whichever is greater（ambient temp between 15℃~35℃)

Detector Type: Uncooled infrared focal plane detector

Frame Rate: 30Hz

IFOV with Standard Lens (spatial resolution): 1.14mrad

Digital Zoom: 1-10x,Continuous adjustment of roller

Minimum Focus Distance: 0.1m

Focus Mode: TurboFocus Speedy Intelligent Auto focus system for continuous, laser distance, graphic contrast,manual

Laser Measurement: Distance, Length, and Area

Palettes: 16 standard palettes, 16 Inverted palettes

Image File Formats: Standard JPEG with measurement data included

Video File Formats: Full radiation thermal image video in IRS format; standard MPEG4 non radiation video;

Batteries: (field-replaceable, rechargeable): 3 Lithium-ion rechargeable batteries (7.4V, 3500mAh)

Storage Memory: 128GB micro SD card

Battery Life: Over 4 hours per battery

Battery Charging Time: 2.5 hours to 90% full charge

Battery Charging System: Two-bay battery charger with LED display (12V, 3A)

Device Interface: Support USB Type-C 3.0, Micro HDMI and SD card

Size (H x W x L): 312.8mm×123.3mm×139.2mm

Weight (battery included): ＜1.0kg (lens not included)

Tripod: UNC ¼"-20 interface

Standard Configuration:

Infrared thermal imager,  25°+ 44°+12°+7°Lens, lens cover, batteries, battery charger,

power adapter, USB type-C to USB interface cable,micro HDMI to HDMI interface cable, SD card, SD card reader,

accessory bag (wrist strap, 2 wrist strap holders, 2 M4 * 8 screws, lanyard, Allen wrench),

information bag (packing list,user manual, calibration certificate, certificate of QC, certificate of inspection, warranty card, USB),

portable soft bag, hard portable case.

Optional lens:

Wide-angle：44° ×34° ( ＜ 0.1m),  IFOV: 2.0 mrad

Telephoto：12° ×9° ( ＜ 1.0m),  IFOV: 0.55 mrad

Ultra Telephoto: 7° ×5° ( ＜ 3.0m),  IFOV: 0.32 mrad
