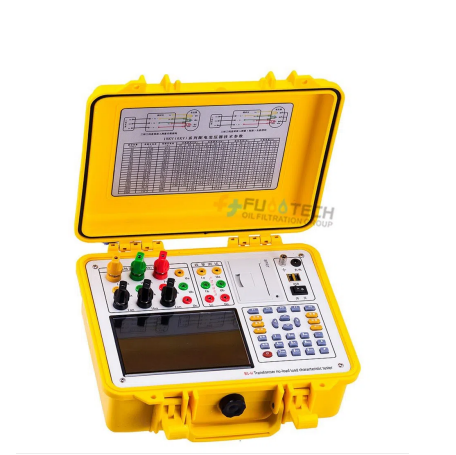

Fuootech BS-H 变压器容量负载和空载损耗测试 (0 ~ 10V, 0 ~ 10A)

Input characteristic:

Active part: Voltage measuring range: 0 ~ 10V

Current measuring range: 0 ~ 10A

Passive part: Voltage measured range:0~750V width limited

Current measured range:0~100A internal range switching

automatically

Accuracy: Voltage: ±0.2%

Current: ±0.2% range

        ower: ±0.5%(CosΦ>0.1),±1.0%(0.05 < CosΦ< 0.1)

Temperature: -10℃~ +40℃

Charging power: AC160V~265V

Insulation: (1) The insulation resistance between voltage, current input terminal

(2) Between power supply input terminal and the shell can withstand 2kV (rms) for 1 minute

Host volume: 32cm×24cm×13cm

Weight: 3kg
