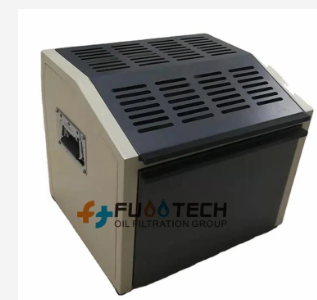

Fuootech FOT-I-100A FOT-I-100A触摸屏控制变压器油试验机 (0.5kV/s-5.0kV/s)

Booster capacity: 1.5 kVA

Boost speed: 0.5kV/s-5.0kV/s (Increment every 0.5), 10 gears optional

Error: 0.2 kV/s

Output voltage: 0 ~ 100 kV

Voltage accuracy: ±(2% reading + 2 words)

Power supply distortion rate: < 1%

Electrode gap: standard 2.5mm

Test times: 6 times (1-9 times optional)

Resting time: 900S (0-9000 S optional)

Interval static time: 300S (0-900 S optional)

Stirring time: 15S (0-250S optional)

Environmental temperature: 0 ~ 40℃

Relative humidity: ≤85%

Working power: AC 220V（1 ± 10%）

Power frequency: 50 Hz (1 ± 10%)

Power consumption: < 200w

Overall dimension: 650mm×470 mm×410 mm

Weight: 42 kg
