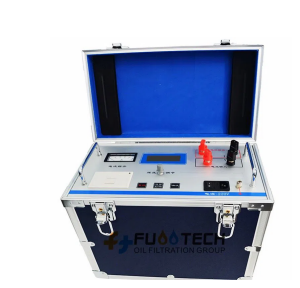

Fuootech FTDC-50A 变压器直流绕组电阻测试仪 (2.5A, 5A, 10A, 20A, 50A)

Testing current: 2.5A, 5A, 10A, 20A, 50A

Testing range 2.5A: 10mΩ~8Ω

5A: 1mΩ~4Ω

10A: 1mΩ~2Ω

20A: 1mΩ~1Ω

50A: 1mΩ~400mΩ

Testing accuracy: ±0.2% (full-scale) ±2 digital

Data Storage: 255 data

Display: LCD Monitor; Resistance is displayed by 4 1/2 bit

Highest Resolution ratio: 0.1μΩ

Power supply: AC 230V±23V, 50Hz±2 Hz; Fuse 10A

Maximum power dissipation: 1200W; When the test current of 50A

Working environment: Temperature: 0℃~40℃

Relative humidity: ≤80%

Size: 220x440x480(mm)

Weight: 16kg with accessories
