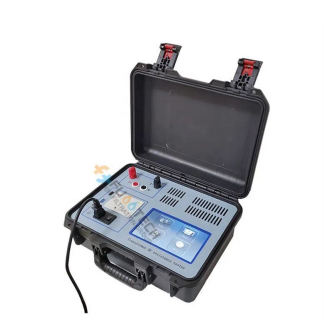

Fuootech FTDC-S1 变压器直流绕组电阻测试仪 (<20mA, 40mA, 200mA, 1A, 5A, 10A)

Test current: auto, <20mA, 40mA, 200mA, 1A, 5A, 10A

Measuring range: 0.5mΩ~0.8Ω (10A)

1mΩ-4Ω (5 A)

5mΩ-20Ω (1 A)

100mΩ-100Ω (200mA)

1Ω-500Ω (40mA)

Accuracy:±(0.2%+2words)

100Ω-100KΩ (<20mA), Accuracy:±(0.5%+2words)

Minimum resolution: 0.1μΩ

display: 7 Inch Touch color LCD, resistance display, significant number is 4

data storage: 1000 groups

Work environment: Ambient temperature: 0℃~40℃,

Relative humidity: <90%RH,

no condensation

Power supply: AC 220V±10V, 50Hz±1Hz (fuse 2A)

Maximum power consumption: 200W

Dimensions: 360*290*170(mm)

Weight: host:6.7kg, line box:5kg
