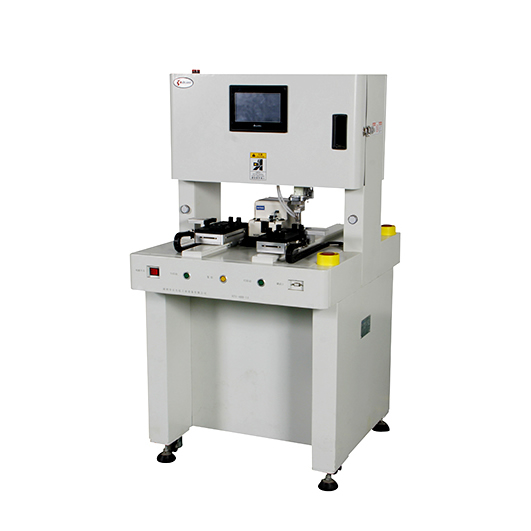

Garland ATS-400II 自动锁付螺丝机

Number of operators: 1 person or no one

model: Floor-standing integrated

Dimensions: L*W*H——785*670*1325(mm)

Weight: 180KG

Operating area: Protective

Reclaiming method: Vacuum suction

Number of electric batches: 1PCS

Number of feeders: 1PCS

Number of work stations: 2PCS

Fixture: custom made

Gas source: 0.4-0.8MPa, oil-free, dry

Power supply: 220V 50HZ

Power: 300W

Applicable screw specifications: Below M3

effectiveness: 1.0s-1.2s/piece

NPL ratio: 1‰ or less (in number of screws)

Speed: X, Y, Z-800, 800, 800mm/s

Precision: +/-0.02mm

Applicable product size: L*W*H--120*200*20(mm)

Alarm item: Sliding teeth, leaking, floating height (optional)

Electric batch torque: Adjustable

Operation interface: touch screen

Coordinate storage: 60

Number of locks: 24

Control unit: 4 axis motion controller

Power: Stepper motor / servo motor

Transmission method: Precision timing belt / roller screw

Operating mode: Front/front, front/back

Model switching time: Within 15 minutes

Data communication: USB port export (optional)

Annex: Coordinate adjustment handle


Details

-This machine is the best-selling model of our company. In addition to excellent lock quality, high speed and other features,

the machine is designed for floor-standing integration, the structure is very firm, the machine shakes very little during operation,

the mechanical transmission part is completely separated from the electrical control part, which is convenient for machine maintenance and maintenance.



-Efficient: 1.0s-1.2s/piece

-can completely replace the manual lock screw station.

-High speed, stable and

-versatile.

-Can store a variety of products. Screw coordinate

-structure is firm, beautiful and durable.

-Easy to learn and use
