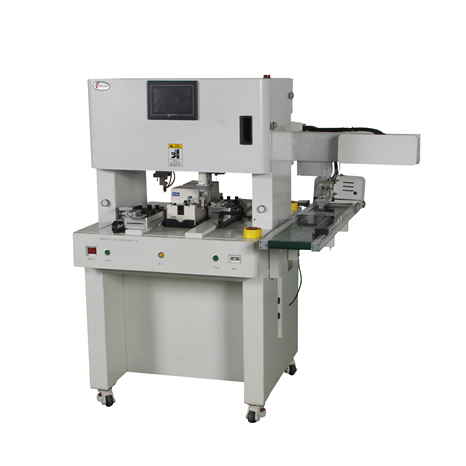

Garland ATS-620II 自动锁螺丝机
制造商: Garland Model: ATS-620II 保障: 12 Month - 报价要求
- 报价要求
- 联系
Number of operators: 1 person
Model: Floor-standing integrated
Dimensions: L*W*H——1265*805*1330(mm)
Weight: 250KG
Operating area: Protective
Reclaiming method: Vacuum suction
Number of electric batches: 2PCS
Number of feeders: 2PCS
Number of work stations: 2PCS
Fixture: custom made
Gas source: 0.4-0.8MPa, oil-free, dry
Power supply: 220V 50HZ
Power: 750W
Applicable screw specifications: Below M3
Effectiveness: Average 0.6s-0.8s/piece
NPL ratio: 1‰ or less (in number of screws)
Speed: X, Y, Z-800, 800, 800mm/s
Precision: +/-0.02mm
Applicable product size: L*W*H--120*200*20(mm)
Alarm item: Sliding teeth, leaking, floating height (optional)
Electric batch torque: Adjustable
Operation interface: touch screen
Coordinate storage: 60
Number of locks: 24
Control unit: 4+4 axis motion controller
Power: Stepper motor / servo motor
Transmission method: Precision timing belt / roller screw
Operating mode: Unmanned automatic, front/front, front/rear arm unloading
Model switching time: Within 20 minutes
Data communication: USB port export (optional)
annex: Coordinate adjustment handle
-The double-locking auxiliary shaft and the double working platform automatically open/unload the mechanical arm, and the operation is completely unmanned.
Suitable for high production capacity and one product,
there are two different specifications of screw production requirements.
The machine is an integrated design, easy to move and debug, easy to learn and use.
-Suitable for a product with two different specifications of screw
-double lock Z-axis, double working platform
-high efficiency, high stability, high cost performance,
-versatile,
-can store a variety of products, screw coordinates,
-automatic loading and unloading, control unmanned
-Easy to learn and use
