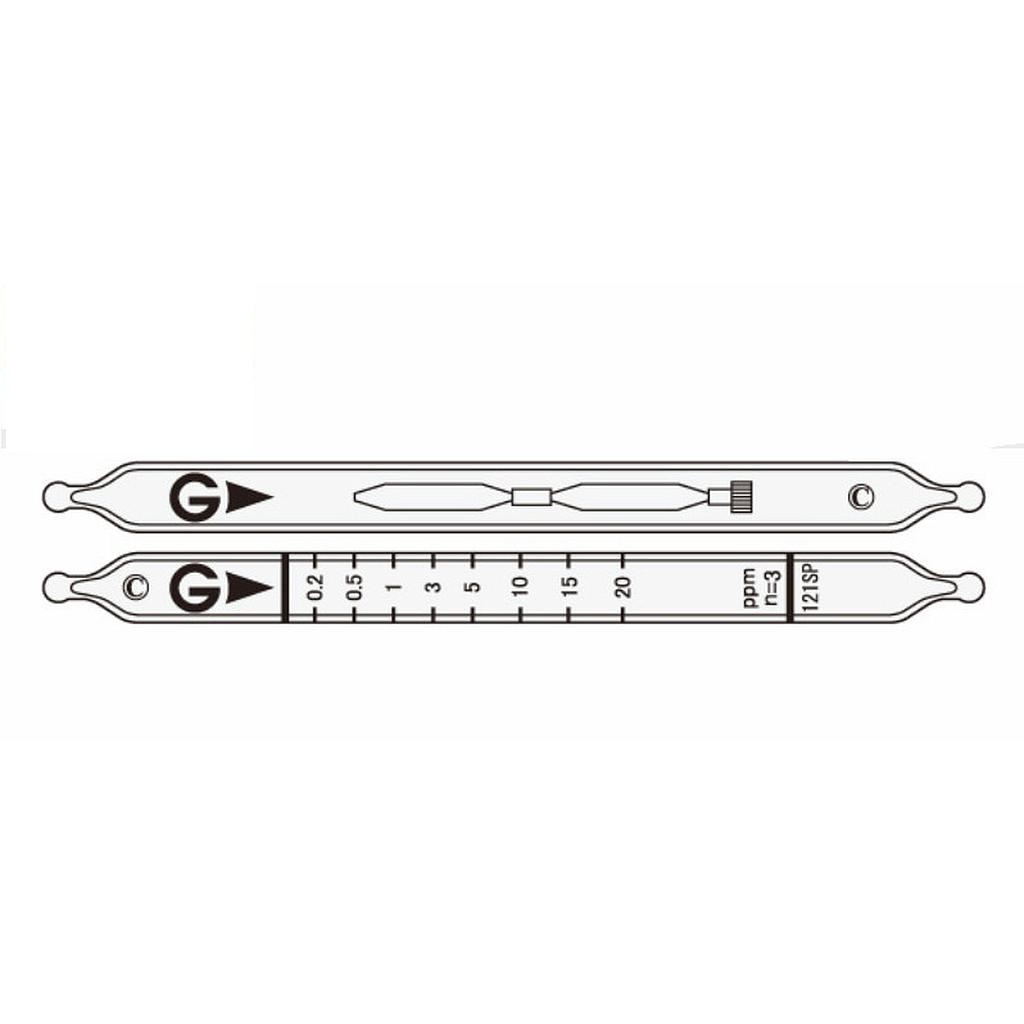

Indicator: 0.2 to 20 ppm
Measuring Range:
+ 0.2 to 20 ppm, Number of Pump Strokes 3
+ 20 to 66 ppm, Number of Pump Strokes 1
Sampling Time: 2 minute per pump stroke
Colour Change: White → Brown
Reaction Principle: 2C6H6+ HCHO → C6H5CH2C6H5 + H2O, C6H5CH2C6H5 + H2S2O7 → Condensation polymer
Coefficient of Variation: 10% (for 0.2 to 5ppm) , 5% (for 5 to 20 ppm)
Nr. of tests: 5
Pump: GV-100S/110S
Performance
| Measuring Range | 0.2 to 20 ppm | 20 to 66 ppm |
| Number of Pump Strokes | 3 | 1 |
| Correction Factor | 1 | 3.3 |
| Sampling Time | 2 minutes per pump stroke | |
| Detecting Limit | 0.1 ppm (n=3) | |
| Colour Change | White → Brown | |
| Reaction Principle | 2C6H6+ HCHO → C6H5CH2C6H5 + H2O C6H5CH2C6H5 + H2S2O7 → Condensation polymer |
|
| Coefficient of Variation | 10% (for 0.2 to 5ppm) , 5% (for 5 to 20 ppm) | |
| Shelf Life | 2 Years | |
| Corrections for temperature & humidity | Unnecessary | |
| Store the tubes at cool and dark place. | ||
Possible coexisting substances and their interferences (NOTE)
| Substance | Concentration | Interference | Change colour by itself to |
| Hexane | ≦ 500 ppm | No | No |
| Toluene | ≦ 300 ppm | No | No |
| Xylene | ≦ 350 ppm | No | No |
Aromatic hydrocarbons other than benzene are trapped in the brown layer in the pretreatment tube. If the pretreatment reagent is entirely consumed (whole brown layer turns to dark brown), a higher reading will be given. |
|||
| Calibration gas generation | Diffusion tube method |
| TLV-TWA | TLV-STEL | Explosive range |
| 0.5 ppm | 2.5 ppm | 1.3 to 7.1% |
