Gastec 26 Polytec-III 定性分析管(NH3,H2S,CnHm)

Gas or Vapour to be Measured: NH3,H2S,CnHm (NH3,H2S,CnHm)
Number of Pump Stroke: 1
Sampling Time: 30 seconds per pump stroke
Nr. of tests: 10
Pump: GV-100S

Detail

Catalog

Manual

Specification
Number of Pump Stroke 1
Sampling Time 30sec. per pump stroke
Shelf Life 2 Years

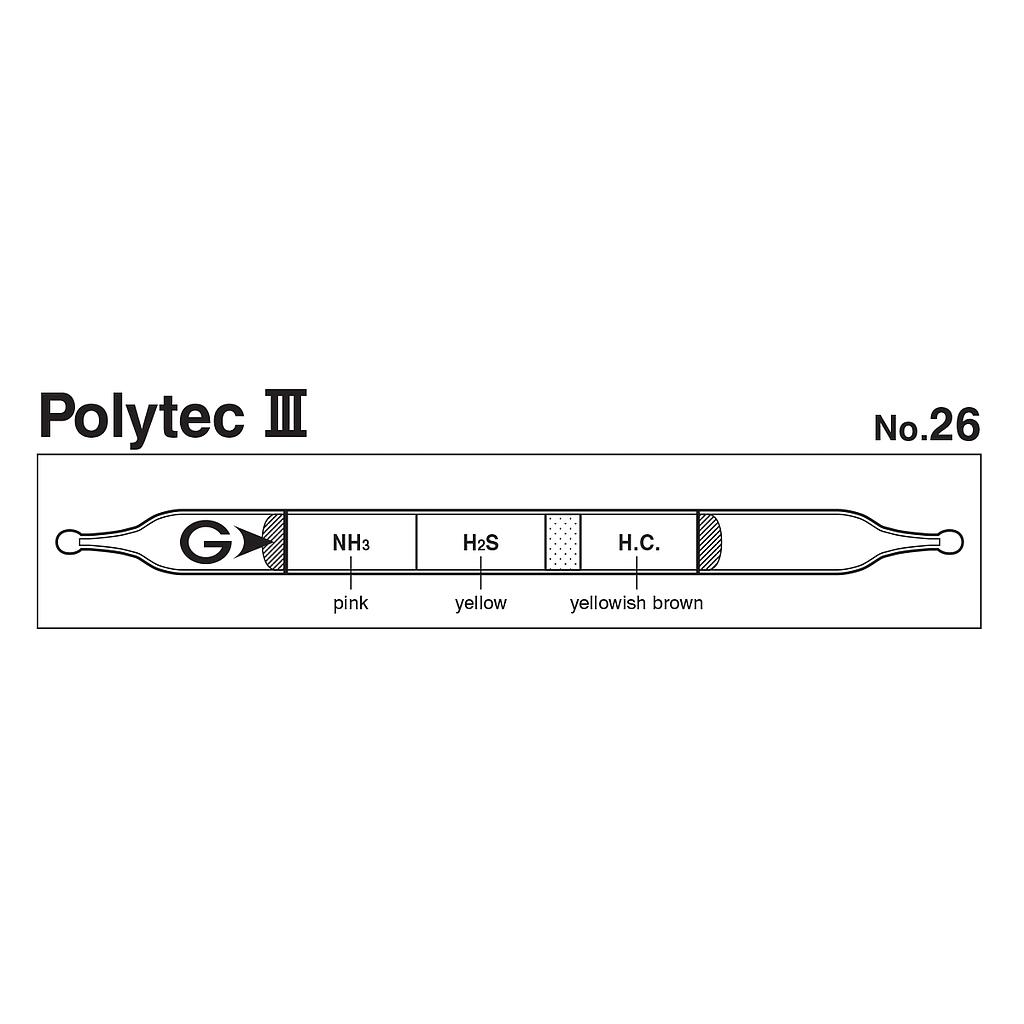

Colour Change of Each Layer
Substance Conc.
(ppm)
Colour Change
NH3 H2S HC
Ammonia 0.5
5
Yellow (Inlet)
Yellow (9mm)
- -
Hydrogen Chloride 5 - Red(8mm) -
Chlorine 1 - Red(10mm) -
Sulphur Dioxide 2 - Red(4mm) -
Nitrogen Dioxide 3 - Red(4mm) -
Hydrogen Sulphide 0.5
2
- Red (Inlet)
Red(4mm)
-
LPG 5000 - - Dark brown(Whole layer)
Gasoline 2
20
- - Greenish brown(Inlet)
Greenish brown(Whole layer)
Butane 500 - - Dark brown(Whole layer)
(1) Amines give the same discolouration with Ammonia.
(2) (Inlet) means the approximate gas concentration discolour the inlet of the layer.
(3) (Whole layer) means the approximate gas concentration discolour the reagent of the whole layer.
