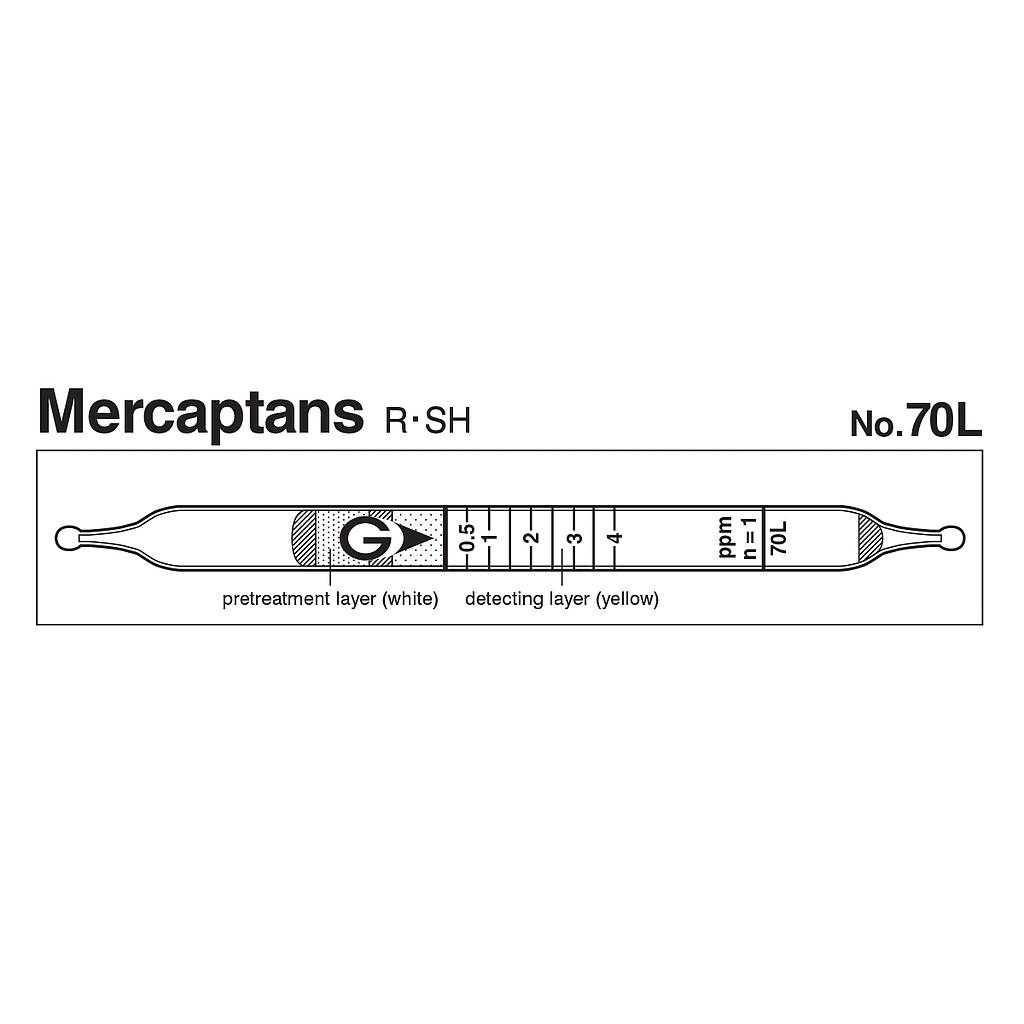

Indicator: 0.5 ~ 4 ppm
Measuring Range:
+ 0.1 ~ 0.2 ppm, Number of Pump Strokes 4
+ 0.2 ~ 0.5 ppm, Number of Pump Strokes 2
+ 0.5 ~ 4 ppm, Number of Pump Strokes 1
+ 4 ~ 8 ppm, Number of Pump Strokes 1/2
Sampling Time: 1.5 minute per pump stroke
Colour Change: Yellow → Red
Reaction Principle: RSH + HgCl2 → RSHgCl + HCl, HCl + Base → Chloride
Coefficient of Variation: 10% (for 0.5 to 1 ppm), 5% (for 1 to 4 ppm)
Nr. of tests: 10
Pump: GV-100S/110S
Details
Catalog
Manual
manual tube
Performance
Measuring Range |
0.1 to 0.2 ppm |
0.2 to 0.5 ppm |
0.5 to 4 ppm |
4 to 8 ppm |
|
Number of Pump Strokes |
|
Correction Factor |
|
Sampling Time |
1.5 minutes per pump stroke |
Detecting Limit |
0.05 ppm (n=4) |
Colour Change |
Yellow → Red |
Reaction Principle |
RSH + HgCl2 → RSHgCl + HCl HCl + Base → Chloride |
Coefficient of Variation |
10% (for 0.5 to 1 ppm), 5% (for 1 to 4 ppm) |
Shelf Life |
2 Years |
Corrections for temperature & humidity |
Unnecessary |
Store the tubes at cool and dark place. |
Possible coexisting substances and their interferences
(NOTE)
Substance |
Concentration |
Interference |
Change colour by itself to |
Acid gases |
|
+ |
Red |
Hydrogen sulphide |
|
No |
No |
Other substance measurable with this detector tube
Substance |
Correction Factor |
No. of pump strokes |
Measuring Range |
Butyl mercaptan |
1.6 |
1/2,1,2 or 4 |
0.16 to 12.8 ppm |
tert-Butyl mercaptan |
1.0 |
0.1 to 8 ppm |
Ethyl mercaptan |
1.0 |
0.1 to 8 ppm |
Methyl mercaptan |
1.0 |
0.1 to 8 ppm |
Propyl mercaptan |
1.2 |
0.12 to 9.6 ppm |
Calibration gas generation |
Permeation tube method |
TLV-TWA |
TLV-STEL |
Explosive range |
- |
- |
- |
