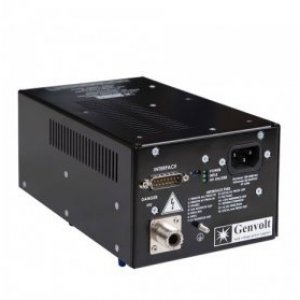

Genvolt 8060 台式高压电源(60kV,2mA)

AC Input voltage range: 85VAC to 256VAC, 47 – 63 Hz

Power Factor: FL 0.99 NL 0.98

Output Polarity: +ve or –ve (Please specify when ordering)

Maximum Voltage: 60kV

Maximum Current: 2mA

Polarity: P or N

Model Number: 8060P (+ve) or 8060N (-ve)

Voltage Load Regulation: 0.01% of full voltage for a no load to a full load change

Voltage Line Regulation: +/- 0.005% of full voltage over the specified input voltage range

Current Load Regulation: 0.01% from 0V to full voltage

Current Line Regulation: +/- 0.01% of full current over the specified input voltage range per 8 hours after

Voltage Ripple: 0.1% p-p of output voltage

Current Stability: 0.02% per 8hrs after ½hr warm up

Temperature Coefficient: 100 ppm per ˚C

Temperature Operating: 0˚C to 45˚C

Storage: -20˚C to +85˚C

Interlock: Open Interlock will shut down unit

Circuit Protection: Overvoltage, Overcurrent, Arcing and Over temperature

Relative Humidity: Non condensing

Weight: Model specific, approximately 3Kgs

Dimensions: 95.25mm (H) x 127mm (W) x 279.4mm (D)

Power Input Connector: IEC320 with mating connector x 2 Metres

HV Output Connector: Proprietary HV Connector

Control Interface Connector: 15 pin ‘D’ connector (Male)
