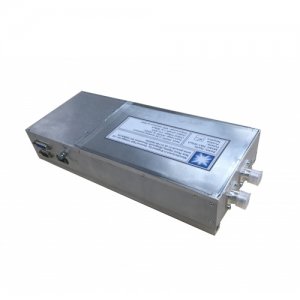

Genvolt Aquila 小型高压模块电源(40W,0-50kV)

Input specifications

DC input voltage range: 20 to 28VDC

Input current: 2.2A Maximum.

Output specifications

Output voltage range: Near 0kV to 50kV

Available output voltages: 10kV, 20kV, 30kV, 40kV and 50kV (For other output voltages please contact the factory)

Output polarity: Positive or Negative

Voltage load regulation: <0.5%

Voltage line regulation: <0.5%

Voltage ripple: <0.5%

Voltage stability: <0.01%

Control interface: 15 way D connector (female)

Operating temperature: 0 to 40°C

Storage temperature: 0 to 60°C

Relative humidity: Operation 30% to 80%.

Storage: <95% non condensing.

Weight: 2.65kg

Dimensions: Height  65mm, Width 127mm, Length 323mm (including rear connectors)
