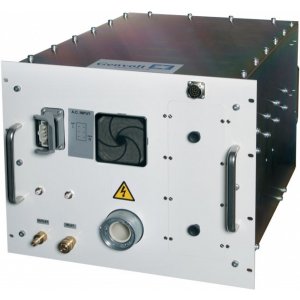

Genvolt Orion X射线光源用电源/ AC/DC / 单相/ 工业用途 (0-60kV,3kW)

Power Supply

Input Voltage: Single phase 200-240VAC, 50/60Hz

Mains Connection: 6 way Harting connector HAN6E

Current Rating: 16A

Output Voltage

Output Voltage: 0 to 60kV

Polarity: Negative

Output Power: max. 3 kW

Output Connection: O4, locked by mechanical nut only

Output Current: 0 to max. 75mA

Voltage Ripple: < 1% @ 60kV 50mA

Voltage Regulation

Load: 0.1% of output voltage no load to full load.

Line: 0.1% for ±10% change in input voltage.

Filament Control

Filament Voltage: 0 to 12Vrms

Filament Current: 0 to 5Arms

Bias Voltage: 0 to 3000Vdc (negative with respect to filament)

Bias Voltage Accuracy: < 1%

Bias Voltage Stability: < 1%

Bias Current: 1mA max.
