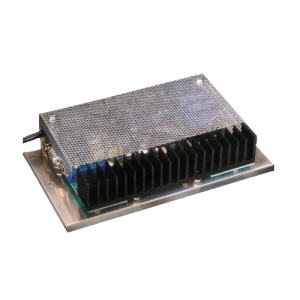

Genvolt Photomultiplier 光电倍增管(1200V,3.6W)

Input voltage: 24 to 30VDC

Current consumption: 0.4A

Output voltage: 50V to 1200V negative

Output current:  3mA maximum

Control voltage: 10V input gives - 1200V output

Output ripple: Less than 10mV

Line regulation: Better than 50ppm/volt

Load regulation: Better than 50ppm/volt

Connector Information:

Pin 1: Monitor point

Pin 2: Power ground

Pin 3: Internal 10V reference output

Pin 4: Remote shutdown

Pin 5: Power input

Pin 6: Variable reference output

Pin 7: Control 0V reference

Pin 8: HV control input

Pin 9: Power ground

Temperature Co-efficient: better that 50ppm/˚C

Connector: is a PCB-mounted 'D' type, male
